How can I get a price quote for Enerpac HSL85007?

You can request a fast quote for Enerpac HSL85007 from Yılsa Engineering. Reference part number CEY-937FC77C31C9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HSL85007 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HSL85007 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HSL85007?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

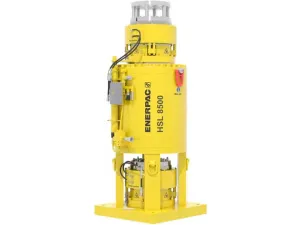

Enerpac HSL85007 8500 kN Strand Jack

Enerpac HSL85007; 8500 kN (850 ton) capacity, 480 mm stroke, 350 bar, hydraulic strand jack with 55 strands of 18 mm diameter.

EnerpacMFR # HSL85007SKU # CEY-937FC77C31C9

Number of Strands55

Dimension D364 mm (14.3 in)

Stroke480 mm (18.9 in)

Dimension C900 mm (35.4 in)

Model Type955 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

HSL85007 is a hydraulic strand jack from the HSL series in the Heavy Lifting Technology line. It offers 8500 kN (850 metric ton / 955 ton) capacity, 480 mm stroke and a maximum operating pressure of 350 bar (5,000 psi). It uses 55 strands with a strand diameter of 18 mm (0.71 in). The unit weighs 5000 kg. Dimensions are A 2402 mm, B 900 mm, C 900 mm and D 364 mm. It is powered by an electric or diesel driven hydraulic power pack and controlled by Enerpac's SCC (Smart Cylinder Control) system. It is used for lifting, lowering and pulling heavy loads where synchronous control is required.

Features and Benefits

8500 kN (850 ton) capacity with 55 strands
Precision control of synchronous lifting and lowering
Single-operator control from a central location via the SCC system
Automated locking and unlocking operation
Telescopic strand guide pipes prevent bird caging
480 mm stroke, 350 bar maximum operating pressure

Enerpac HSL85007

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Number of Strands55

Dimension D364 mm (14.3 in)

Stroke480 mm (18.9 in)

Dimension C900 mm (35.4 in)

Model Type955 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Capacity8500 kN (850 ton · 955 ton)

Dimension B900 mm (35.4 in)

ApplicationsLift, Lower, Pull

Dimension A2402 mm (94.6 in)

Strand Diameter18 mm (0.71 in)

Product LineHeavy Lifting Technology

Weight5000 kg (11023 lbs)

Product TypeStrand Jacks

SeriesHSL

Documents & CAD

For this product 1

Document() (NOT_APPLIC)PDF·162 KB

Series documents 2· shared by this product series

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB

BrochureHSL-Series_Strand_Jacks_Pumps_Accessories_EN-GBPDF·1.5 MB
