How can I get a price quote for Enerpac HSL7006?

You can request a fast quote for Enerpac HSL7006 from Yılsa Engineering. Reference part number CEY-7B4B2D99AE60. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HSL7006 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HSL7006 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HSL7006?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

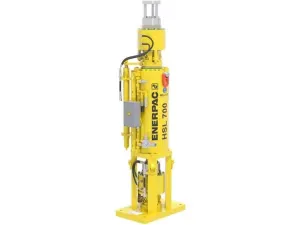

Enerpac HSL7006 700 kN Strand Jack

Enerpac HSL7006; 700 kN (70 ton) capacity, 480 mm stroke, 350 bar, hydraulic strand jack with 7 strands of 15.7 mm diameter.

EnerpacMFR # HSL7006SKU # CEY-7B4B2D99AE60

Number of Strands7

Dimension D93 mm (3.7 in)

Stroke480 mm (18.9 in)

Dimension C575 mm (22.6 in)

Model Type79 ton, 0.62 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

HSL7006 is a hydraulic strand jack from the HSL series in the Heavy Lifting Technology line. It offers 700 kN (70 metric ton / 79 ton) capacity, 480 mm stroke and a maximum operating pressure of 350 bar (5,000 psi). It uses 7 strands with a strand diameter of 15.7 mm (0.62 in). The unit weighs 640 kg. Dimensions are A 1915 mm, B 360 mm, C 575 mm and D 93 mm. It is powered by an electric or diesel driven hydraulic power pack and controlled by Enerpac's SCC (Smart Cylinder Control) system. It is used for lifting, lowering and pulling loads.

Features and Benefits

700 kN (70 ton) capacity with 7 strands
Precision control of synchronous lifting and lowering
Single-operator control from a central location via the SCC system
Automated locking and unlocking operation
Telescopic strand guide pipes prevent bird caging
640 kg weight, 480 mm stroke

Enerpac HSL7006

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Number of Strands7

Dimension D93 mm (3.7 in)

Stroke480 mm (18.9 in)

Dimension C575 mm (22.6 in)

Model Type79 ton, 0.62 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Capacity700 kN (70 ton · 79 ton)

Dimension B360 mm (14.2 in)

ApplicationsLift, Lower, Pull

Dimension A1915 mm (75.4 in)

Strand Diameter15,7 mm (0.62 in)

Product LineHeavy Lifting Technology

Weight640 kg (1411 lbs)

Product TypeStrand Jacks

SeriesHSL

Documents & CAD

For this product 1

Document() (NOT_APPLIC)PDF·160 KB

Series documents 2· shared by this product series

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB

BrochureHSL-Series_Strand_Jacks_Pumps_Accessories_EN-GBPDF·1.5 MB

CAD Files 4

3D Model
