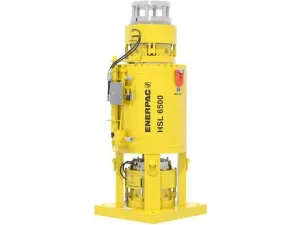

Enerpac HSL65007 6500 kN Strand Jack

Enerpac HSL65007; 6500 kN (650 ton) capacity, 480 mm stroke, 350 bar, hydraulic strand jack with 43 strands of 18 mm diameter.

EnerpacMFR # HSL65007SKU # CEY-543811EC7844

Number of Strands43

Dimension D351 mm (13.8 in)

Stroke480 mm (18.9 in)

Dimension C850 mm (33.5 in)

Model Type731 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

HSL65007 is a hydraulic strand jack from the HSL series in the Heavy Lifting Technology line. It offers 6500 kN (650 metric ton / 731 ton) capacity, 480 mm stroke and a maximum operating pressure of 350 bar (5,000 psi). It uses 43 strands with a strand diameter of 18 mm (0.71 in). The unit weighs 3950 kg. Dimensions are A 2237 mm, B 850 mm, C 850 mm and D 351 mm. It is powered by an electric or diesel driven hydraulic power pack and controlled by Enerpac's SCC (Smart Cylinder Control) system. It is used for lifting, lowering and pulling heavy loads where synchronous control is required.

Features and Benefits

6500 kN (650 ton) capacity with 43 strands
Precision control of synchronous lifting and lowering
Single-operator control from a central location via the SCC system
Automated locking and unlocking operation
Telescopic strand guide pipes prevent bird caging
480 mm stroke, 350 bar maximum operating pressure

Enerpac HSL65007

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Number of Strands43

Dimension D351 mm (13.8 in)

Stroke480 mm (18.9 in)

Dimension C850 mm (33.5 in)

Model Type731 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Capacity6500 kN (650 ton · 731 ton)

Dimension B850 mm (33.5 in)

ApplicationsLift, Lower, Pull

Dimension A2237 mm (88.1 in)

Strand Diameter18 mm (0.71 in)

Product LineHeavy Lifting Technology

Weight3950 kg (8690 lbs)

Product TypeStrand Jacks

SeriesHSL (discontinued)

Documents & CAD

For this product 1

Document() (NOT_APPLIC)PDF·234 KB

Series documents 2· shared by this product series

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB

BrochureHSL-Series Strand Jacks; EnglishPDF·426 KB
