How can I get a price quote for Enerpac HSL4507?

You can request a fast quote for Enerpac HSL4507 from Yılsa Engineering. Reference part number CEY-55221B120FB2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HSL4507 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HSL4507 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HSL4507?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

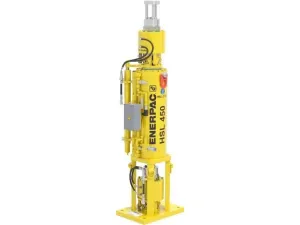

Enerpac HSL4507 45 ton Strand Jack

Enerpac HSL4507; 45 ton (450 kN) capacity, 480 mm stroke, 350 bar, 3-strand (18 mm) hydraulic strand jack.

EnerpacMFR # HSL4507SKU # CEY-55221B120FB2

Number of Strands3

Dimension D73 mm (2.9 in)

Stroke480 mm (18.9 in)

Dimension C500 mm (19.7 in)

Model Type51 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

HSL4507 is a 3-strand hydraulic strand jack from the HSL series of Enerpac Heavy Lifting Technology. It is designed for lifting, lowering and pulling applications. Capacity is 450 kN (45 metric tons; the 51 ton in the product name is the short-ton equivalent), stroke is 480 mm and maximum operating pressure is 350 bar (5,000 psi). Strand diameter is 18 mm (0.71 in), weight is 500 kg and dimensions (A/B/C) are 1728/350/500 mm. It is powered by an electric or diesel driven hydraulic power pack and controlled by the Enerpac SCC (Smart Cylinder Control) system. It is used in heavy lifting work that requires precise synchronous control.

Features and Benefits

45 ton (450 kN) capacity, 480 mm stroke, 350 bar operating pressure
Precision control of synchronous lifting and lowering
Can be controlled by a single operator from a central location with the SCC system for increased safety
Automated locking and unlocking operation
Telescopic strand guide pipes prevent bird caging

Enerpac HSL4507

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Number of Strands3

Dimension D73 mm (2.9 in)

Stroke480 mm (18.9 in)

Dimension C500 mm (19.7 in)

Model Type51 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Capacity450 kN (45 ton · 51 ton)

Dimension B350 mm (13.8 in)

ApplicationsLift, Lower, Pull

Dimension A1728.0 mm (68.0 in)

Strand Diameter18 mm (0.71 in)

Product LineHeavy Lifting Technology

Weight500 kg (1102 lbs)

Product TypeStrand Jacks

SeriesHSL

Documents & CAD

For this product 1

Document() (NOT_APPLIC)PDF·160 KB

Series documents 2· shared by this product series

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB

BrochureHSL-Series_Strand_Jacks_Pumps_Accessories_EN-GBPDF·1.5 MB
