How can I get a price quote for Enerpac HSL45007?

You can request a fast quote for Enerpac HSL45007 from Yılsa Engineering. Reference part number CEY-7B4B2D994EC8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HSL45007 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HSL45007 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HSL45007?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

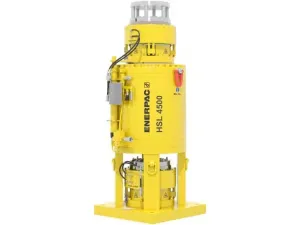

Enerpac HSL45007 450 ton Strand Jack

Enerpac HSL45007; 450 ton (4500 kN) capacity, 480 mm stroke, 350 bar, 31-strand (18 mm) hydraulic strand jack.

EnerpacMFR # HSL45007SKU # CEY-7B4B2D994EC8

Number of Strands31

Dimension D272 mm (10.7 in)

Stroke480 mm (18.9 in)

Dimension C733 mm (28.9 in)

Model Type506 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

HSL45007 is a 31-strand hydraulic strand jack from the HSL series of Enerpac Heavy Lifting Technology. The source data lists the series as discontinued. It is designed for lifting, lowering and pulling applications. Capacity is 4500 kN (450 metric tons; the 506 ton in the product name is the short-ton equivalent), stroke is 480 mm and maximum operating pressure is 350 bar (5,000 psi). Strand diameter is 18 mm (0.71 in), weight is 3050 kg and dimensions (A/B/C) are 2223/733/733 mm. It is powered by an electric or diesel driven hydraulic power pack and controlled by the Enerpac SCC (Smart Cylinder Control) system. It is used in heavy lifting work that requires precise synchronous control.

Features and Benefits

450 ton (4500 kN) capacity, 480 mm stroke, 350 bar operating pressure
Precision control of synchronous lifting and lowering
Can be controlled by a single operator from a central location with the SCC system for increased safety
Automated locking and unlocking operation
Telescopic strand guide pipes prevent bird caging
