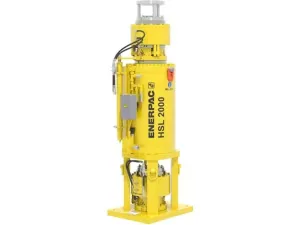

Enerpac HSL20007 200 ton Strand Jack

Enerpac HSL20007; 200 ton (2000 kN) capacity, 480 mm stroke, 350 bar, 12-strand (18 mm) hydraulic strand jack.

EnerpacMFR # HSL20007SKU # CEY-937FC77CAA4D

Number of Strands12

Dimension D165 mm (6.5 in)

Stroke480 mm (18.9 in)

Dimension C650 mm (25.6 in)

Model Type225 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

HSL20007 is a 12-strand hydraulic strand jack from the HSL series of Enerpac Heavy Lifting Technology. The source data lists the series as discontinued. It is designed for lifting, lowering and pulling applications. Capacity is 2000 kN (200 metric tons; the 225 ton in the product name is the short-ton equivalent), stroke is 480 mm and maximum operating pressure is 350 bar (5,000 psi). Strand diameter is 18 mm (0.71 in), weight is 1400 kg and dimensions (A/B/C) are 2001/522/650 mm. It is powered by an electric or diesel driven hydraulic power pack and controlled by the Enerpac SCC (Smart Cylinder Control) system. It is used in heavy lifting work that requires precise synchronous control.

Features and Benefits

200 ton (2000 kN) capacity, 480 mm stroke, 350 bar operating pressure
Precision control of synchronous lifting and lowering
Can be controlled by a single operator from a central location with the SCC system for increased safety
Automated locking and unlocking operation
Telescopic strand guide pipes prevent bird caging
