How can I get a price quote for Enerpac HSL1507?

You can request a fast quote for Enerpac HSL1507 from Yılsa Engineering. Reference part number CEY-937FC77DE14F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HSL1507 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HSL1507 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HSL1507?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

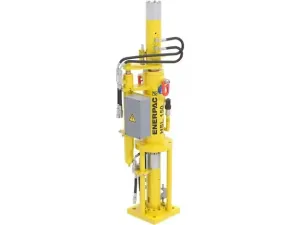

Enerpac HSL1507 15 ton Strand Jack

Enerpac HSL1507; 15 ton (150 kN) capacity, 250 mm stroke, 350 bar, single-strand (18 mm) hydraulic strand jack.

EnerpacMFR # HSL1507SKU # CEY-937FC77DE14F

Number of Strands1

Dimension D20 mm (0.8 in)

Stroke250 mm (9.8 in)

Dimension C220 mm (8.7 in)

Model Type17 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

HSL1507 is a hydraulic strand jack from the HSL series of Enerpac Heavy Lifting Technology. Its single-strand design offers a compact and economical solution for lifting, lowering and pulling applications. Capacity is 150 kN (15 metric tons; the 17 ton in the product name is the short-ton equivalent), stroke is 250 mm and maximum operating pressure is 350 bar (5,000 psi). Strand diameter is 18 mm (0.71 in), weight is 100 kg and dimensions (A/B/C) are 1242/220/220 mm. It is powered by an electric or diesel driven hydraulic power pack and controlled by the Enerpac SCC (Smart Cylinder Control) system. It is used in heavy lifting applications that require synchronous lifting and lowering.

Features and Benefits

15 ton (150 kN) capacity, 250 mm stroke, 350 bar operating pressure
Precision control of synchronous lifting and lowering
Can be controlled by a single operator from a central location with the SCC system for increased safety
Automated locking and unlocking operation
Telescopic strand guide pipes prevent bird caging

Enerpac HSL1507

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Number of Strands1

Dimension D20 mm (0.8 in)

Stroke250 mm (9.8 in)

Dimension C220 mm (8.7 in)

Model Type17 ton, 0.71 inch Strand Diameter

Maximum Operating Pressure350 bar (5,000 psi)

Capacity150 kN (15 ton · 17 ton)

Dimension B220 mm (8.7 in)

ApplicationsLift, Lower, Pull

Dimension A1242 mm (48.9 in)

Strand Diameter18 mm (0.71 in)

Product LineHeavy Lifting Technology

Weight100 kg (220 lbs)

Product TypeStrand Jacks

SeriesHSL

Documents & CAD

For this product 1

Document() (NOT_APPLIC)PDF·111 KB

Series documents 2· shared by this product series

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB

BrochureHSL-Series_Strand_Jacks_Pumps_Accessories_EN-GBPDF·1.5 MB

CAD Files 3

3D Model
