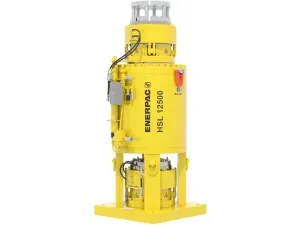

Enerpac HSL125007 1250 tonne Strand Jack
Enerpac HSL125007; 1250 tonne (12500 kN) capacity, 600 mm stroke, 84-strand, 350 bar hydraulic strand jack.
Number of Strands84
Dimension D458 mm (18 in)
Stroke600 mm (23.6 in)
Dimension C1100 mm (43.3 in)
Model Type1405 ton, 0.71 inch Strand Diameter
Maximum Operating Pressure350 bar (5,000 psi)
About This Product
HSL125007 is a hydraulic strand jack from the Enerpac HSL series, which is marked as discontinued in the source data. Capacity is 1250 metric tons (12500 kN; 1405 short tons), stroke is 600 mm (23.6 in) and maximum operating pressure is 350 bar (5,000 psi). It uses 84 strands with a strand diameter of 18 mm (0.71 in).
Dimensions are 2658 x 1100 x 1100 mm (A x B x C), dimension D is 458 mm, and weight is 8300 kg (18,298 lb). It is powered by electric or diesel driven hydraulic power packs and controlled by the Enerpac SCC-Smart Cylinder Control system.
It is used for lifting, lowering and pulling in very heavy load work requiring precise synchronous control.
Features and Benefits
- 1250 tonne (12500 kN) capacity, 600 mm stroke
- Precise control of synchronous lifting and lowering
- Single operator control from a central location with SCC-Smart Cylinder Control
- Automated locking and unlocking operation
- Telescopic strand guide pipes prevent bird caging
- 84 strands, 18 mm (0.71 in) strand diameter
Enerpac HSL125007
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Number of Strands84
Dimension D458 mm (18 in)
Stroke600 mm (23.6 in)
Dimension C1100 mm (43.3 in)
Model Type1405 ton, 0.71 inch Strand Diameter
Maximum Operating Pressure350 bar (5,000 psi)
Capacity12500 kN (1250 ton · 1405 ton)
Dimension B1100 mm (43.3 in)
ApplicationsLift, Lower, Pull
Dimension A2658 mm (104.6 in)
Strand Diameter18 mm (0.71 in)
Product LineHeavy Lifting Technology
Weight8300 kg (18298 lbs)
Product TypeStrand Jacks
SeriesHSL (discontinued)
