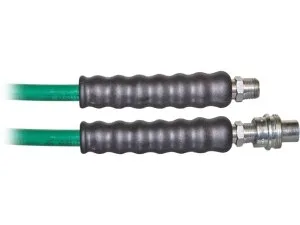

Enerpac Simplex HPC10 700 bar Hydraulic Hose 3 m

HPC10 is a Simplex HPC-series thermoplastic high pressure hydraulic hose. It is 3.0 m (10 ft) long with a 6.4 mm (0.25 in) internal diameter, 700 bar (10,000 psi) working pressure and 2750 bar (40,000 psi) minimum burst pressure (4:1 safety factor). One end is 3/8 in NPTF male and the other end is a C213 coupler; weight is about 1.3 kg. The polyurethane outer cover resists abrasion and wear. The reinforced polyester and carbon steel wire design contributes to low volume expansion, minimized fatigue and enhanced system efficiency. Hoses with couplers include a CR215 dust cap. It is recommended for demanding applications and continuous duty. With long hose lengths, the pump reservoir may need refilling after filling the hoses; for 6.4 mm ID hoses, oil capacity (cm³) = 32.1699 x length (m).
