How can I get a price quote for Enerpac HP1000DMIN?

You can request a fast quote for Enerpac HP1000DMIN from Yılsa Engineering. Reference part number YLSMTRPLATLEVFT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HP1000DMIN in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HP1000DMIN genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HP1000DMIN?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

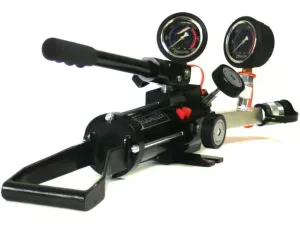

Enerpac HP1000DMIN 690 bar Twin Port Hand Pump

Enerpac HP1000DMIN; 690 bar, 1110 cm³ (67.7 in³) usable oil, two-speed, twin port sealed hydraulic hand pump with gauge and adaptor.

EnerpacMFR # HP1000DMINSKU # YLSMTRPLATLEVFT

Maximum Operating Pressure Range690 bar (10,000 psi)

Overall Length893 mm (35.16 in)

Country of OriginUnited Kingdom

Maximum Operating Pressure 1st Stage13,8 bar

Max. Handle Effort21 kg (46.30 lbs)

Nominal Oil Capacity1000 cm³ (61.0 in³)

Have questions?Chat on WhatsApp

About This Product

HP1000DMIN is a two-speed, twin port, sealed hydraulic hand pump. The two ports can be isolated individually or used together, so a single operator can control two single-acting cylinders or tools at the same time. Maximum operating pressure is 690 bar (10,000 psi) and usable oil capacity is 1110 cm³ (67.7 in³). Oil volume per stroke is 3.62 cm³ in the 1st stage and 0.77 cm³ in the 2nd stage; maximum handle effort is 21 kg, overall length is 893 mm and weight is in the 7–15 kg range. It operates 700 bar (10,000 psi) rated hydraulic equipment with an oil capacity of 1000 cc or less, in any orientation, on- or off-shore. The set includes 1 pump unit, 2 x 700 bar gauges, 2 x 3/8 in port gauge adaptors, an instruction manual and cardboard packaging.

Features and Benefits

Twin port: two single-acting cylinders can be actuated simultaneously; ports can be isolated individually
Two-speed operation; 690 bar maximum pressure
1110 cm³ (67.7 in³) usable oil capacity
Sealed design; works in any orientation, suitable on- or off-shore
Set includes 2 gauges and 2 port gauge adaptors

Enerpac HP1000DMIN

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range690 bar (10,000 psi)

Overall Length893 mm (35.16 in)

Country of OriginUnited Kingdom

Maximum Operating Pressure 1st Stage13,8 bar

Max. Handle Effort21 kg (46.30 lbs)

Nominal Oil Capacity1000 cm³ (61.0 in³)

Oil Volume per Stroke (2nd Stage)0.77 cm³ (0.047 in³)

Usable Oil Capacity1110 cm³ (67.7 in³)

Maximum Operating Pressure690 bar (10,000 psi)

Maximum Flow at Rated Pressure0.00077 l/min (0,77 cm3/stroke · 0.047 in³/min · 0.047 in3/stroke)

Oil Volume per Stroke (1st Stage)3.62 cm³ (0.221 in³)

Handle Length537 mm (21.14 in)

Product TypeHand Pump - Two Speed

Reservoir Capacity1110 cm³ (67.7 in³)

SeriesHP – Hand Pump

Pump Power SourceManual

Max. Operating Pressure 2nd Stage700 bar (10,000 psi)

Product LineIndustrial Tools

Weight9,3 kg (20.5 lbs)

Piston Stroke18 mm (0.71 in)

Max. Operating Pressure 1st Stage197 psi
