How can I get a price quote for Enerpac HMT7500?

You can request a fast quote for Enerpac HMT7500 from Yılsa Engineering. Reference part number YLS5T6XURERMZOK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HMT7500 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HMT7500 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HMT7500?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

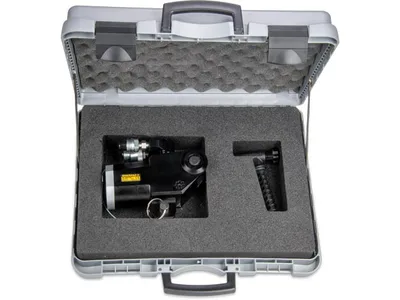

Enerpac HMT7500 10,252 Nm Torque Wrench Drive Unit

Enerpac HMT7500; 10,252 Nm (7562 ft·lb) max torque, 55–100 mm hex range, 690 bar, hydraulic torque wrench drive unit for HLP or HSQ cassettes.

EnerpacMFR # HMT7500SKU # YLS5T6XURERMZOK

Hexagon Range55 - 100 mm (2 3/16 - 3 15/16 in)

Maximum Operating Pressure690 bar (10,000 psi)

Maximum Torque Output10252 Nm (7562 ft-lbs)

ApplicationsTorque

Product TypeHMT Drive Unit

SeriesHMT

Have questions?Chat on WhatsApp

About This Product

HMT7500 is a modular hydraulic torque wrench drive unit from the HMT series. It is used with an HLP low-profile hex cassette or an HSQ square drive cassette, and cassettes can be swapped easily. Maximum torque output is 10,252 Nm (7562 ft·lb) and minimum torque is 1025 Nm (756 ft·lb). The hex range is 55–100 mm (2 3/16–3 15/16 in), maximum operating pressure is 690 bar (10,000 psi) and weight is 3.2 kg. It is used for bolt tightening and loosening in maintenance, assembly and industrial plant applications. All HMT tools are CE - ATEX certified.

Features and Benefits

10,252 Nm (7562 ft·lb) maximum torque output at 690 bar operating pressure
Modular system: one drive unit with an HLP hex or HSQ square drive cassette
Interchangeable with compatible cassettes from other manufacturers
Constant torque across the full stroke with ±3% accuracy
Supplied as standard with an ergonomic safety handle and link pin retainer
CE - ATEX certified

Enerpac HMT7500

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Hexagon Range55 - 100 mm (2 3/16 - 3 15/16 in)

Maximum Operating Pressure690 bar (10,000 psi)

Maximum Torque Output10252 Nm (7562 ft-lbs)

ApplicationsTorque

Product TypeHMT Drive Unit

SeriesHMT

Minimum Torque1025 Nm (756 ft-lbs)

Model Type2 3/16 - 3 15/16 in. Hex Range (55 - 100 mm)

Dimension A180 mm (7.1 in)

Product LineBolting Tools

Weight3,2 kg (7.05 lbs)

Dimension C82 mm

Dimension B163 mm

Set IncludesSWH6A

Documents & CAD

For this product 1

Instruction ManualHMT1500 HMT3500 HMT7500 HMT13000 Operating ManualPDF·5.4 MB

Series documents 1· shared by this product series

BrochureHMT-Series Hydraulic Torque Wrenches; EnglishPDF·1.1 MB

Alternative Names & Search Terms

HMT7500HMT 7500HMT-7500hmt7500Enerpac HMT7500Enerpac HMT 7500HMT7500 torque wrenchHMT7500 drive unitHMT7500 hydraulic torque wrenchEnerpac HMT seriesHMT series drive unit10252 Nm hydraulic torque wrench7562 ft lb torque wrench55-100 mm hex hydraulic torque wrenchdrive unit for HLP low profile cassettedrive unit for HSQ square drive cassettemodular hydraulic torque wrenchATEX certified hydraulic torque wrench
