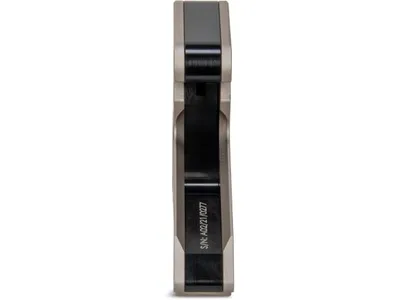

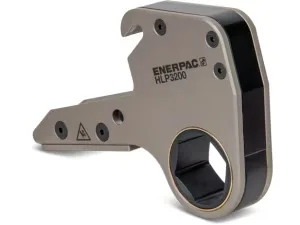

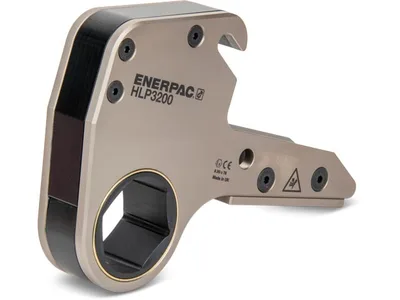

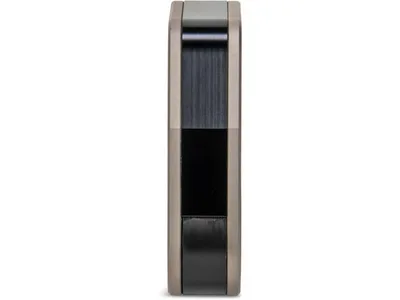

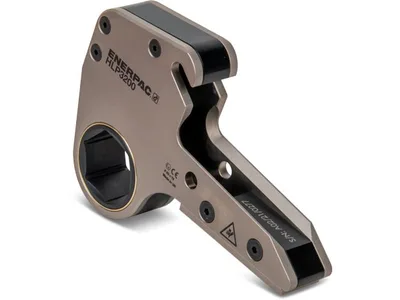

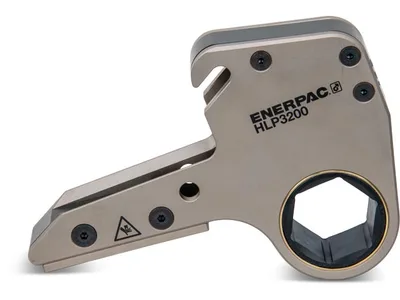

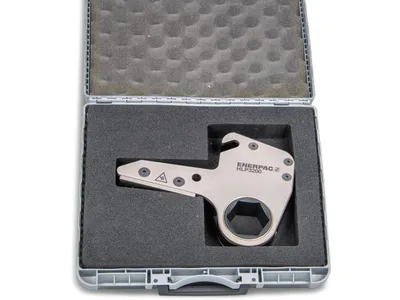

Enerpac HLP3200 50 mm Hex Cassette

Enerpac HLP3200; 50 mm (2 in) hexagon AF size, 5084 Nm (3750 ft-lbs) maximum torque, imperial/metric cassette for HMT3500 drive units.

EnerpacMFR # HLP3200SKU # YLSDXZ7AIZVPFWU

Dimension G77 mm (3.05 in)

Dimension E41 mm (1.59 in)

Dimension F36 mm (1.42 in)

Dimension D42 mm (1.7 in)

Dimension C1.84 mm (7.24 in)

Maximum Torque Output5084 Nm (3750 ft-lbs)

Have questions?Chat on WhatsApp

About This Product

The HLP3200 is a low-profile hexagon cassette that works with the HMT3500 modular hydraulic torque wrench drive unit. It has a 50 mm (2 in) hexagon size and suits imperial or metric fasteners. Maximum torque output is 5084 Nm (3750 ft-lbs) and weight is 3.9 kg (8.60 lb). Constant torque output provides ±3% accuracy across the full stroke. It is supplied with a calibration certificate. With its robust steel construction and tool-free fast release mechanism, this CE - ATEX declared cassette is used for bolting in tight-access applications.

Features and Benefits

Compatible with HMT3500 drive units
50 mm (2 in) hexagon size; imperial or metric use
5084 Nm (3750 ft-lbs) maximum torque output
±3% torque accuracy across full stroke
Low-profile design for access in tight spaces
Calibration certificate included; CE - ATEX declared

Enerpac HLP3200

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G77 mm (3.05 in)

Dimension E41 mm (1.59 in)

Dimension F36 mm (1.42 in)

Dimension D42 mm (1.7 in)

Dimension C1.84 mm (7.24 in)

Maximum Torque Output5084 Nm (3750 ft-lbs)

Dimension B167 mm (6.57 in)

ApplicationsTorque

Dimension H41 mm (1.63 in)

Product TypeCassette - Imperial or Metric

AF Size50 mm (2 in)

SeriesHLP

Model Type2 in. / 50 mm AF for HMT3500 drives

Dimension A153 mm (6.02 in)

Product LineBolting Tools

Weight3,9 kg (8.60 lbs)

Documents & CAD

Series documents 1· shared by this product series

BrochureHMT-Series Hydraulic Torque Wrenches; EnglishPDF·1.1 MB

Alternative Names & Search Terms

HLP3200HLP-3200HLP 3200Enerpac HLP3200HLP3200 cassetteHLP3200 torque wrench cassetteEnerpac HLP seriesHLP series cassetteHMT3500 cassettecassette for HMT3500HMT3500 50 mm cassette50 mm hexagon cassette50 mm hydraulic torque wrench cassette2 in torque wrench cassette2 in hexagon cassette5084 Nm torque wrench cassettelow-profile hex cassetteHMT series torque wrench cassetteEnerpac hydraulic torque wrench cassetteATEX torque wrench cassette
