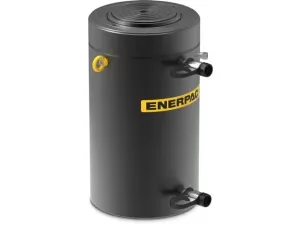

Enerpac HCR30012 341 ton Hydraulic Cylinder

Enerpac HCR30012; 341 ton capacity, 300 mm stroke, up to 700 bar working pressure, double-acting high tonnage hydraulic cylinder.

EnerpacMFR # HCR30012SKU # YLSKLKARDBXT15

Cylinder Class300 ton

Stroke300 mm (11.81 in)

Collapsed Height (A)546 mm (21.5 in)

Outside Diameter D305 mm (12.01 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U260 mm (10.24 in)

Have questions?Chat on WhatsApp

About This Product

The HCR30012 is a double-acting high tonnage hydraulic cylinder from the HCR series. Capacity is 341 ton (300 ton class), stroke is 300 mm (11.81 in), collapsed height is 546 mm, outside diameter is 305 mm and weight is 281 kg. The body and plunger have a nitrocarburized surface treatment. The base mounting holes are on a 260 mm bolt circle. Collar threads are optional on 300 ton and higher models. Maximum working pressure for the series is 700 bar (10,000 psi). It is used for lifting, lowering and pushing in large-scale construction and heavy load projects. The double-acting design provides hydraulic plunger return.

Features and Benefits

Double-acting for fast, controlled advance and retract
Nitrocarburized surface resists side-loading and cyclic wear
10% side-load resistance over the full stroke
Replaceable upper and lower bearings support the plunger throughout the stroke
Certified lifting eyes and base mounting holes
Up to 700 bar working pressure; complies to ASME B30.1

Enerpac HCR30012

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class300 ton

Stroke300 mm (11.81 in)

Collapsed Height (A)546 mm (21.5 in)

Outside Diameter D305 mm (12.01 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U260 mm (10.24 in)

Surface TreatmentNitride

Weight281 kg (620 lbs)

Oil Capacity (Advance)13012 cm³ (794.05 in³)

Base Mounting Holes Thread Depth Z25 mm (0.98 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)3587 cm³ (218.91 in³)

ApplicationsLift, Lower, Push

Base Mounting Holes Thread VM16 x 2

Maximum Cylinder Capacity (Advance)3036 kN (341 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)235 mm (9.25 in)

Product TypeHigh Tonnage Cylinder

SeriesHCR

Base to Advance Port H58 mm (2.28 in)

Optional Tilt Saddle Diameter (J1)6.89 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)585 mm (23.03 in)

Saddle Maximum Tilt Angle5 degrees

Top to Retract Port (I)101 mm (3.98 in)

Saddle Diameter J140 mm (5.51 in)

Country of OriginUnited States

Saddle Diameter J1175 mm

Extended Height (B)846 mm (33.31 in)

Cylinder Effective Area (Advance)433,7 cm² (67.23 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)39 mm (1.54 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K4 mm (0.16 in)

Saddle Protrusion from Plunger K14 mm

Plunger Diameter F200 mm (7.87 in)
