Enerpac HCG60010 673 ton 250 mm Hydraulic Cylinder

Enerpac HCG60010; 673 ton capacity, 250 mm (9.84 in) stroke, up to 700 bar working pressure, single-acting load return high tonnage hydraulic cylinder.

EnerpacMFR # HCG60010SKU # YLSVYHQUCAP5YX6

Cylinder Class600 ton

Stroke250 mm (9.84 in)

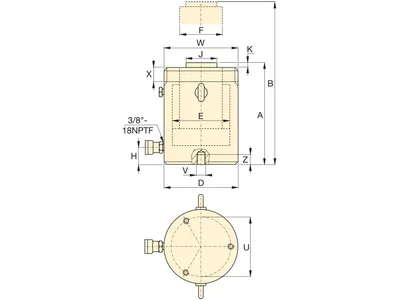

Collapsed Height (A)552 mm (21.73 in)

Outside Diameter D430 mm (16.93 in)

Return TypeSingle-Acting, Load Return

Base Mounting Holes Bolt Circle U370 mm (14.57 in)

Have questions?Chat on WhatsApp

About This Product

HCG60010 is a single-acting, load return hydraulic cylinder from the Enerpac HCG high tonnage series. It offers 673 ton capacity (600 imperial ton class) and 250 mm stroke. Collapsed height is 552 mm, outside diameter is 430 mm, and weight is 562 kg. The body and plunger have a nitrocarburized surface finish. Base mounting holes are on a 370 mm bolt circle. Maximum working pressure is up to 700 bar (10,000 psi) and the cylinder complies with ASME B30.1. It is used for lifting and pushing very heavy loads in large-scale construction and heavy industry projects.

Features and Benefits

Load return plunger: simple to use, fewer components to maintain
Nitrocarburized finish: resists side-loading and cyclic wear
10% side-load resistance over the full stroke
Stop-ring prevents plunger blow-out
Replaceable upper and lower bearings support the plunger throughout the stroke
Certified lifting eyes and base mounting holes

Enerpac HCG60010

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class600 ton

Stroke250 mm (9.84 in)

Collapsed Height (A)552 mm (21.73 in)

Outside Diameter D430 mm (16.93 in)

Return TypeSingle-Acting, Load Return

Base Mounting Holes Bolt Circle U370 mm (14.57 in)

Surface TreatmentNitride

Weight562 kg (1,239 lbs)

Oil Capacity (Advance)21382 cm³ (1,304.84 in³)

Base Mounting Holes Thread Depth Z36 mm (1.42 in)

Maximum Operating Pressure700 bar (10,150 psi)

ApplicationsLift, Push

Base Mounting Holes Thread VM24 x 3

Maximum Cylinder Capacity (Advance)5987 kN (673 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)330 mm (12.99 in)

Product TypeHigh Tonnage Cylinder

SeriesHCG

Base to Advance Port H85 mm (3.35 in)

Optional Tilt Saddle Diameter (J1)9.84 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)605 mm (23.82 in)

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J194 mm (7.64 in)

Country of OriginUnited States

Saddle Diameter J1250 mm

Extended Height (B)802 mm (31.57 in)

Cylinder Effective Area (Advance)855,3 cm² (132.57 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)53 mm (2.09 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K4 mm (0.16 in)

Saddle Protrusion from Plunger K14 mm

Plunger Diameter F270 mm (10.63 in)
