How can I get a price quote for Enerpac HC9250C?

You can request a fast quote for Enerpac HC9250C from Yılsa Engineering. Reference part number CEY-7B4B2D99323B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HC9250C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HC9250C genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HC9250C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

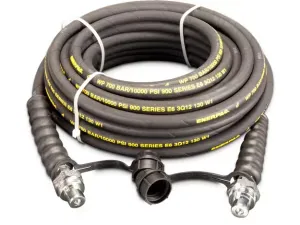

Enerpac HC9250C 15 m Hydraulic Hose

Enerpac HC9250C; 15 m (50 ft) length, 6.4 mm (0.25 in) inside diameter, 689 bar (10,000 psi) working pressure, heavy-duty rubber hydraulic hose with CH604 ends.

EnerpacMFR # HC9250CSKU # CEY-7B4B2D99323B

Country of OriginUnited States

End Two CouplerCH604

Length50 ft

Internal Diameter6,4 mm (0.25 in)

Product TypeHeavy-duty Rubber Hose

Maximum Operating Pressure10,000 psi

Have questions?Chat on WhatsApp

About This Product

HC9250C is a heavy-duty rubber high-pressure hydraulic hose from the H900 series. It is 15 m (50 ft) long with a 6.4 mm (0.25 in) inside diameter and a maximum working pressure of 689 bar (10,000 psi). Both ends are CH604. It has two layers of steel wire braid under a rubber cover and is designed to comply with the Material Handling Institute IJ-100 hose specification. Hose oil capacity is about 483 cm³ (29.46 in³) and weight is about 9.1 kg (20 lb). Its flexible, low-memory construction suits long hose runs and repeated heavy-duty high-pressure applications. With long hose lengths, the pump reservoir may need to be topped up after the hoses are filled.

Features and Benefits

Maximum working pressure 689 bar (10,000 psi)
15 m (50 ft) length; CH604 on both ends
Two layers of steel wire braid with rubber cover
Crimped-on rubber strain relief for longer life and durability
Designed to comply with Material Handling Institute IJ-100 hose specification
Flexible with little memory; well suited to long hose runs

Enerpac HC9250C

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

End Two CouplerCH604

Length50 ft

Internal Diameter6,4 mm (0.25 in)

Product TypeHeavy-duty Rubber Hose

Maximum Operating Pressure10,000 psi

SeriesH900

Oil Capacity29.46 in³

Model Type50 ft., 0.25 in Int. Diam., CH604 Ends

Product LineIndustrial Tools

End One CouplerCH604

Weight20 lbs

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic Hose / FittingsPDF·386 KB

Instruction ManualHose, HydraulicPDF·4.1 MB 4 languages· in one file

BrochureH700-H900-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureHigh_Pressure_Hydraulic_Hoses_EN-SGPDF·279 KB·English
