How can I get a price quote for Enerpac HBSL606?

You can request a fast quote for Enerpac HBSL606 from Yılsa Engineering. Reference part number CEY-55221B134EF4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HBSL606 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HBSL606 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HBSL606?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

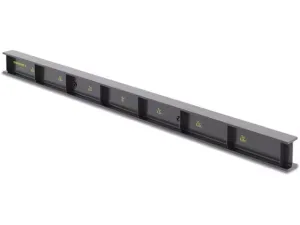

Enerpac HBSL606 450 kN Header Beam

Enerpac HBSL606; 450 kN (≈51 ton) load at beam center, 6.0 m length, header beam for SL60 hydraulic gantries.

EnerpacMFR # HBSL606SKU # CEY-55221B134EF4

Beam Width (C)310 mm (12.2 in)

Beam Depth (B)340 mm (13.39 in)

Gantry Series CompatibilitySL

Max. Load at Beam Center450 kN (51 ton)

Product TypeHeader Beam

Beam Length (A)6,0 m (19.69 ft)

Have questions?Chat on WhatsApp

About This Product

HBSL606 is a header beam for SL60 hydraulic gantry systems in the Heavy Lifting Technology range. It is compatible with the SL gantry series. The beam is 6.0 m (19.69 ft) long, 310 mm (12.2 in) wide and 340 mm (13.39 in) deep, and weighs 1500 kg (3307 lb). Maximum load at a single point at the beam center is 450 kN (≈51 ton). It is sold in pairs and includes lifting points and fork pockets for easy positioning on the gantry legs. It is used in heavy lifting and moving work.

Features and Benefits

450 kN (≈51 ton) maximum load at beam center
6.0 m beam length, 1500 kg weight
Supplied with load chart
Includes lifting eyes and/or fork pockets
Sold in pairs; easy positioning on gantry legs
Capacity based on a single center point; consult Enerpac for off-center load chart

Enerpac HBSL606

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Beam Width (C)310 mm (12.2 in)

Beam Depth (B)340 mm (13.39 in)

Gantry Series CompatibilitySL

Max. Load at Beam Center450 kN (51 ton)

Product TypeHeader Beam

Beam Length (A)6,0 m (19.69 ft)

SeriesHBSL

Product LineHeavy Lifting Technology

Weight1500 kg (3307 lbs)
