How can I get a price quote for Enerpac H7220?

You can request a fast quote for Enerpac H7220 from Yılsa Engineering. Reference part number CEY-937FC7807183. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac H7220 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac H7220 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac H7220?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

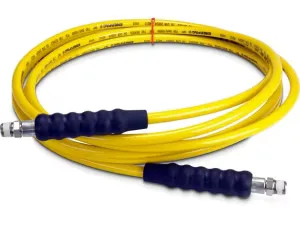

Enerpac H7220 6.1 m Thermoplastic Hydraulic Hose

Enerpac H7220; 6.1 m (20 ft) length, 6.4 mm ID, 700 bar (10,000 psi) working pressure, thermoplastic high pressure hydraulic hose with 3/8 NPTF ends.

EnerpacMFR # H7220SKU # CEY-937FC7807183

Country of OriginGermany

End Two Coupler3/8" NPTF

Maximum Operating Pressure700 bar (10,000 psi)

Length6,1 m (20 ft)

Capacity196,24 cm³

Internal Diameter6,4 mm (0.25 in)

Have questions?Chat on WhatsApp

About This Product

H7220 is a thermoplastic high pressure hydraulic hose from the Enerpac H700 series. Length is 6.1 m (20 ft), internal diameter 6.4 mm (0.25 in), maximum operating pressure 700 bar (10,000 psi), with a 4:1 safety factor. Both ends are 3/8 NPTF; oil capacity is 196.24 cm³ and weight is 2.8 kg. The hose has two layers of steel wire braid under a polyurethane outer jacket. The jacket provides abrasion resistance, and low volumetric expansion under pressure supports system efficiency. Vinyl strain relief guards on both ends improve life and durability. It is used in demanding, repeated high-pressure hydraulic applications.

Features and Benefits

4:1 safety factor for demanding applications
Maximum working pressure of 700 bar (10,000 psi)
Polyurethane outer jacket for maximum abrasion resistance
Low volumetric expansion under pressure for better system efficiency
Vinyl strain relief guards on both ends for longer life

Enerpac H7220

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginGermany

End Two Coupler3/8" NPTF

Maximum Operating Pressure700 bar (10,000 psi)

Length6,1 m (20 ft)

Capacity196,24 cm³

Internal Diameter6,4 mm (0.25 in)

Product TypeThermo-plastic Hose

SeriesH700

Oil Capacity11.78 in³

End Two Assembly3/8" NPTF

Model Type20 ft., 0.25 in Int. Diam., 3/8" NPTF Ends

Product LineIndustrial Tools

End One Coupler3/8" NPTF

Weight2,8 kg (6.2 lbs)

End One Assembly3/8" NPTF

Documents & CAD

Series documents 6· shared by this product series

Instruction ManualHydraulic Hose / FittingsPDF·386 KB

Instruction ManualHose, HydraulicPDF·4.1 MB 4 languages· in one file

BrochureH700-H900-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureH700-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureHigh_Pressure_Hydraulic_Hoses_EN-SGPDF·279 KB·English

BrochureSystem Components & Control ValvesPDF·2.8 MB·English
