How can I get a price quote for Enerpac H4071L?

You can request a fast quote for Enerpac H4071L from Yılsa Engineering. Reference part number CEY-8EF3B0346598. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac H4071L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac H4071L genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac H4071L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

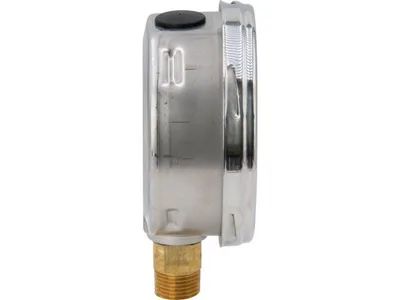

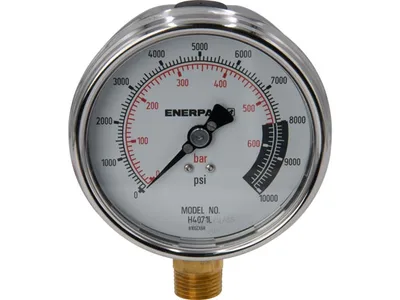

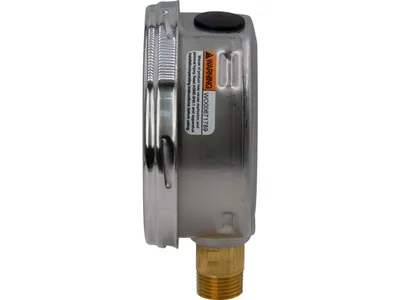

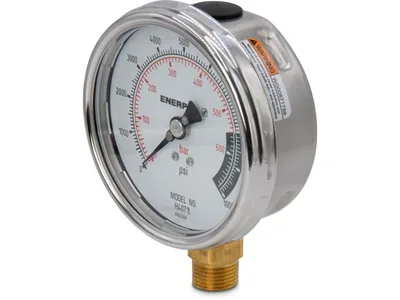

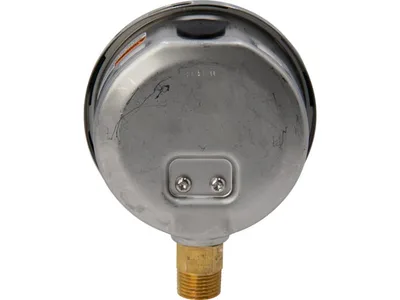

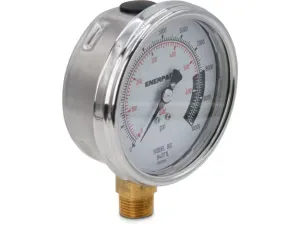

Enerpac H4071L 700 bar Pressure Gauge

Enerpac H4071L; 700 bar (10,000 psi) maximum pressure, 100 mm face, 1/2 NPTF lower mount, dual-scale (bar/psi) hydraulic pressure gauge.

EnerpacMFR # H4071LSKU # CEY-8EF3B0346598

Dimension EN/A mm

Accuracy (Full Scale)1 %

Country of OriginUnited States

Dimension D136 mm (5.38 in)

Dimension C1/2" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The H4071L is a lower-mount hydraulic pressure gauge with a 100 mm (4 in) face from the Enerpac H-Series. Maximum working pressure is 700 bar (10,000 psi), and the dial has a dual bar/psi scale. Major graduation is 100 bar, minor graduation is 10 bar, and accuracy is 1% of full scale. The connection thread is 1/2 NPTF. It is a dry-type gauge intended for applications where vibration and moisture are not a concern. It includes a safety blow-out disk and a pressure equalizing membrane. It is used to monitor hydraulic system pressure in high-cycle production environments. A gauge snubber or needle valve is recommended to shut off the gauge when not in use.

Features and Benefits

700 bar (10,000 psi) maximum working pressure
Dual-scale dial reading in bar and psi
100 mm (4 in) face, 1% of full scale accuracy
Safety blow-out disk and pressure equalizing membrane
1/2 NPTF lower mount connection
Gauge snubber or needle valve recommended for high-cycle use

Enerpac H4071L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension EN/A mm

Accuracy (Full Scale)1 %

Country of OriginUnited States

Dimension D136 mm (5.38 in)

Dimension C1/2" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B49 mm (1.93 in)

Minor Graduation10 bar (100 psi)

StyleDry

Major Graduation100 bar (1000 psi)

Product TypePressure Gauge

SeriesH

Dimension A100 mm (4 in)

Product LineIndustrial Tools

Port Thread1/2 NPTF

Face Diameter100 mm

MountingLower Mount

Documents & CAD

Series documents 2· shared by this product series

BrochureG-H-Series Hydraulic Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English
