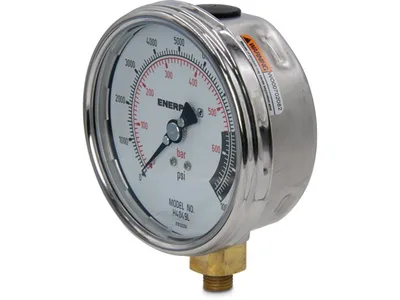

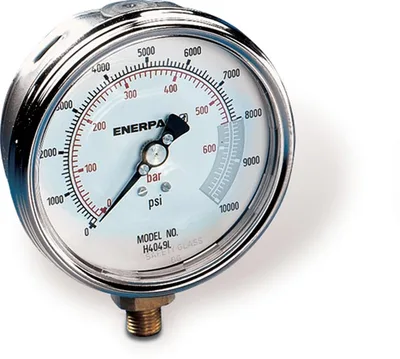

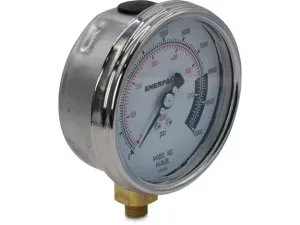

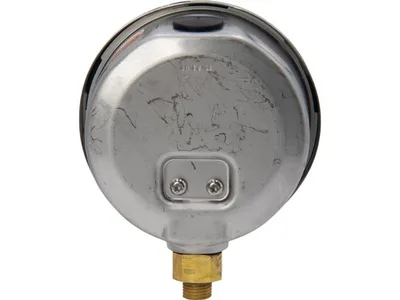

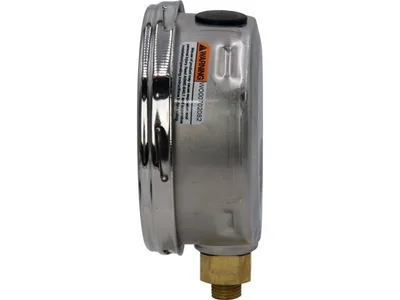

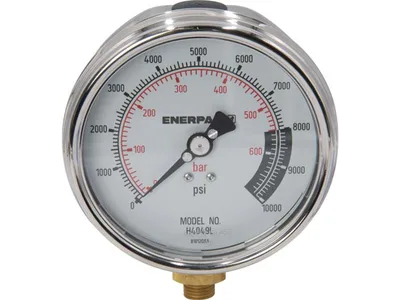

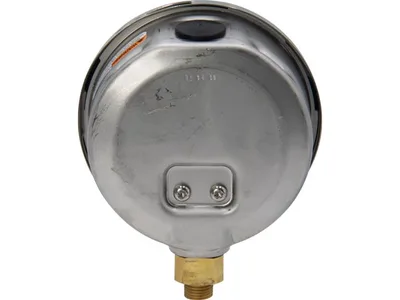

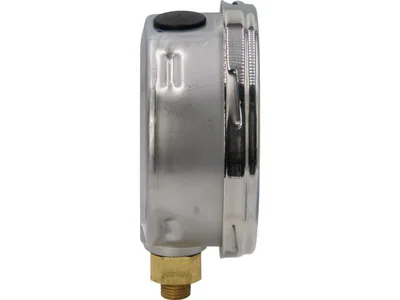

Enerpac H4049L 700 bar Pressure Gauge

Enerpac H4049L; 700 bar (10,000 psi) maximum pressure, 100 mm face, 1/4 NPTF lower mount, dual-scale (bar/psi) hydraulic pressure gauge.

EnerpacMFR # H4049LSKU # CEY-8EF3B0346599

Dimension EN/A mm

Accuracy (Full Scale)1 %

Country of OriginUnited States

Dimension D121 mm (4.8 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The H4049L is a lower-mount hydraulic pressure gauge with a 100 mm (4 in) face from the Enerpac H-Series. Maximum working pressure is 700 bar (10,000 psi), and the dial has a dual bar/psi scale. Major graduation is 100 bar, minor graduation is 10 bar, and accuracy is 1% of full scale. The connection thread is 1/4 NPTF. It is a dry-type gauge intended for applications where vibration and moisture are not a concern. It includes a safety blow-out disk and a pressure equalizing membrane. It is used to monitor hydraulic system pressure in high-cycle production environments. Gauge snubbers or needle valves are recommended for high-cycle applications.

Features and Benefits

700 bar (10,000 psi) maximum working pressure
Dual-scale dial reading in bar and psi
100 mm (4 in) face, 1% of full scale accuracy
Safety blow-out disk and pressure equalizing membrane
1/4 NPTF lower mount for easy installation
Gauge snubber or needle valve recommended for high-cycle use

Enerpac H4049L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension EN/A mm

Accuracy (Full Scale)1 %

Country of OriginUnited States

Dimension D121 mm (4.8 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B29 mm (1.15 in)

Minor Graduation10 bar (100 psi)

StyleDry

Major Graduation100 bar (1000 psi)

Product TypePressure Gauge

SeriesH

Dimension A100 mm (4 in)

Product LineIndustrial Tools

Port Thread1/4 NPTF

Face Diameter100 mm

MountingLower Mount

Documents & CAD

Series documents 2· shared by this product series

BrochureG-H-Series Hydraulic Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English
