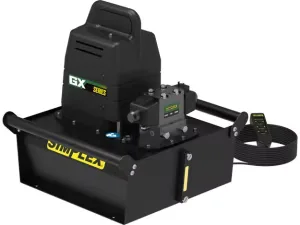

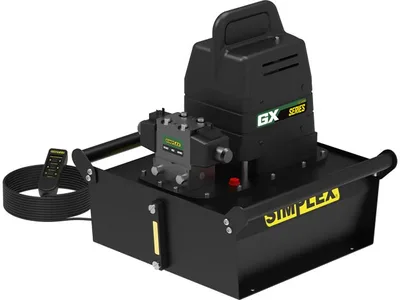

Enerpac GX515 700 bar Electric Hydraulic Pump

Enerpac GX515; 700 bar (10,000 psi), 18.93 L usable oil, 115 V electric hydraulic pump with 4-way solenoid valve for double-acting cylinders.

EnerpacMFR # GX515SKU # YLSIGNK3SRAIRI7

Dimension C515,6 mm (20.3 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B424 mm (16.7 in)

Motor Voltage115 V

Usable Oil Capacity18,93 l (5 gal)

Motor Frequency60 Hz

Have questions?Chat on WhatsApp

About This Product

The GX515 is an electric hydraulic power pump from the GX series. It is driven by a 1.7 hp universal motor, comes with an NA plug for 115 V / 60 Hz supply, and has a welded steel 5-gallon reservoir (18.93 L usable oil). Maximum operating pressure is 700 bar (10,000 psi). Output flow is 50 in³/min at 10,000 psi, with a first-stage pressure of 1,100 psi. The valve is a 4-way, 3-position solenoid (electric) type compatible with double-acting cylinders. Weight is 46 kg. It suits intermittent use with small and mid-sized hydraulic cylinders and tools. It is equipped with a 10 ft remote pendant.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
1.7 hp universal motor, 115 V / 60 Hz
Welded steel reservoir with 18.93 L usable oil capacity
4-way, 3-position solenoid valve for double-acting cylinders
10 ft remote pendant
Low startup voltage; 46 kg weight

Enerpac GX515

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension C515,6 mm (20.3 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B424 mm (16.7 in)

Motor Voltage115 V

Usable Oil Capacity18,93 l (5 gal)

Motor Frequency60 Hz

Product TypePower Pump - Electric

Valve OperationSolenoid

Pump Valve Type4-Way, 3-Position

Motor Size1.7 hp

SeriesGX

Output Flow Rate @ 10,000 psi50 in³/min

Max. Operating Pressure 2nd Stage700 bar (10,000 psi)

Current Draw17 A

Cylinder CompatibilityDouble-Acting

Dimension A444,5 mm (17.5 in)

Product LineHydraulic Tools

Weight46 kg (102 lbs)

Max. Operating Pressure 1st Stage1100 psi

Documents & CAD

Series documents 1· shared by this product series

Repair Parts SheetRepair Parts SheetPDF·3.0 MB 4 languages· in one file
