How can I get a price quote for Enerpac GX513?

You can request a fast quote for Enerpac GX513 from Yılsa Engineering. Reference part number YLSYERQMPANKBXF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac GX513 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac GX513 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac GX513?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

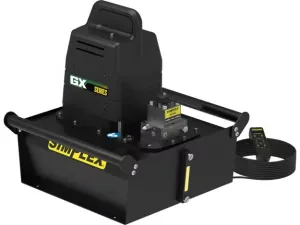

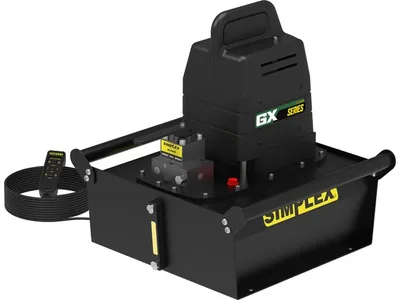

Enerpac GX513 700 bar Electric Hydraulic Pump

Enerpac GX513; 700 bar (10,000 psi), 18.93 L usable oil, 115 V electric hydraulic pump with 3-way manual valve for single-acting cylinders.

EnerpacMFR # GX513SKU # YLSYERQMPANKBXF

Dimension C515,6 mm (20.3 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B424 mm (16.7 in)

Motor Voltage115 V

Usable Oil Capacity18,93 l (5 gal)

Motor Frequency60 Hz

Have questions?Chat on WhatsApp

About This Product

The GX513 is an electric hydraulic power pump from the GX series. It is driven by a 1.7 hp universal motor, comes with an NA plug for 115 V / 60 Hz supply, and has a welded steel 5-gallon reservoir (18.93 L usable oil). Maximum operating pressure is 700 bar (10,000 psi). Output flow is 50 in³/min at 10,000 psi, with a first-stage pressure of 1,100 psi. The valve is a 3-way, 3-position manual type compatible with single-acting cylinders. Weight is 44 kg. It suits intermittent use with small and mid-sized hydraulic cylinders and tools. It is equipped with a 10 ft remote pendant.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
1.7 hp universal motor, 115 V / 60 Hz
Welded steel reservoir with 18.93 L usable oil capacity
3-way, 3-position manual valve for single-acting cylinders
10 ft remote pendant
Low startup voltage; 44 kg weight

Enerpac GX513

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension C515,6 mm (20.3 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B424 mm (16.7 in)

Motor Voltage115 V

Usable Oil Capacity18,93 l (5 gal)

Motor Frequency60 Hz

Product TypePower Pump - Electric

Valve OperationManual

Pump Valve Type3-Way, 3-Position

Motor Size1.7 hp

SeriesGX

Output Flow Rate @ 10,000 psi50 in³/min

Max. Operating Pressure 2nd Stage700 bar (10,000 psi)

Current Draw17 A

Cylinder CompatibilitySingle-Acting

Dimension A444,5 mm (17.5 in)

Product LineHydraulic Tools

Weight44 kg (97 lbs)

Max. Operating Pressure 1st Stage1100 psi

Documents & CAD

Series documents 1· shared by this product series

Repair Parts SheetRepair Parts SheetPDF·3.0 MB 4 languages· in one file
