How can I get a price quote for Enerpac GF5P?

You can request a fast quote for Enerpac GF5P from Yılsa Engineering. Reference part number CEY-937FC77DFE76. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac GF5P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac GF5P genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac GF5P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

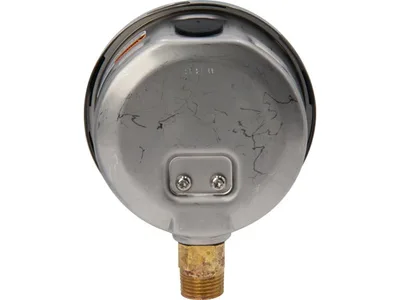

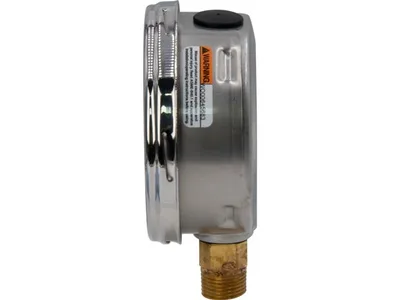

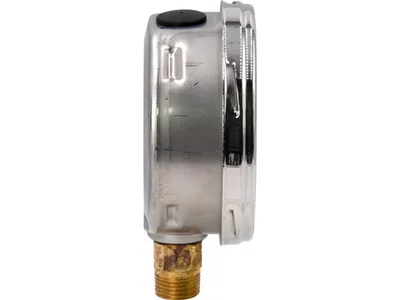

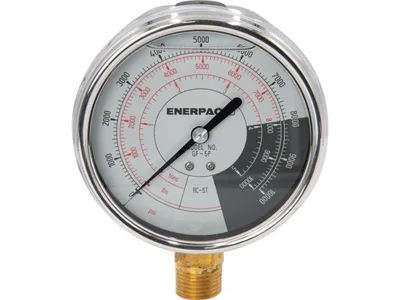

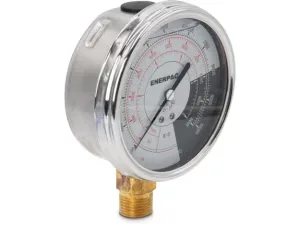

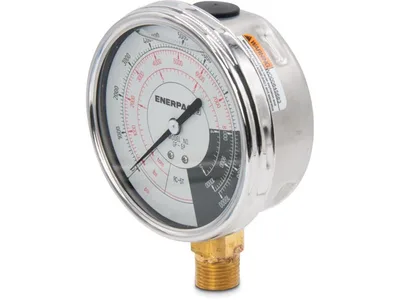

Enerpac GF5P 0-5 ton Force Gauge

Enerpac GF5P; 0-5 ton, 700 bar glycerine-filled hydraulic force and pressure gauge with imperial scale, for use with 5 ton cylinders.

EnerpacMFR # GF5PSKU # CEY-937FC77DFE76

Accuracy (Full Scale)1 %

Country of OriginUnited States

Force0 - 10,000 lbs (0 - 5 ton)

Maximum Operating Pressure700 bar (10,000 psi)

Units per Division100 psi, 100 lbs, .1 ton

StyleGlycerine Filled

Have questions?Chat on WhatsApp

About This Product

GF5P is a glycerine-filled gauge used to read pressure and force on hydraulic cylinders. It has an imperial scale and is designed for use with 5 ton cylinders. Force range is 0-5 ton (0-10,000 lbs), maximum operating pressure is 700 bar (10,000 psi) and scale divisions are 100 psi, 100 lbs and 0.1 ton. The gauge has a 100 mm (4 in) face, 1/2 NPTF thread and lower mount. Accuracy is 1% of full scale. Required gauge adaptors are GA1 and GA2, and it is compatible with all 5 ton RC and RSM cylinders. Force readings can be used to measure external loads supported by a cylinder or jack, or the force used for pressing parts.

Features and Benefits

4 in (100 mm) diameter face for excellent readability
Stainless steel case for corrosion resistance
Glycerine fill protects against vibration, sudden pressure changes and moisture
Calibrated with dual scale reading for psi and bar
Fast, easy installation

Enerpac GF5P

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Accuracy (Full Scale)1 %

Country of OriginUnited States

Force0 - 10,000 lbs (0 - 5 ton)

Maximum Operating Pressure700 bar (10,000 psi)

Units per Division100 psi, 100 lbs, .1 ton

StyleGlycerine Filled

Product TypeForce and Pressure Gauge

ScaleImperial

SeriesGF

Required Gauge AdaptorGA1, GA2

Gauge CompatibilityAll 5 ton RC, RSM Cylinders

Cylinder Series CompatibilityRC, RSM

Product LineIndustrial Tools

Port Thread1/2 NPTF

MountingLower Mount

Face Diameter4 in

Documents & CAD

Series documents 3· shared by this product series

BrochureGF-GP-Series Force Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

DocumentGaugePDF·225 KB·English

Alternative Names & Search Terms

GF5PGF-5PGF 5PEnerpac GF5PEnerpac GF-5PGF5P gaugeGF5P force and pressure gaugeEnerpac GF seriesEnerpac GF series gauge5 ton cylinder gaugegauge for 5 ton hydraulic cylindersimperial scale hydraulic gauge0-5 ton force gauge700 bar glycerine filled gaugeglycerine filled hydraulic gauge4 inch face hydraulic gaugeRC RSM 5 ton cylinder gaugehydraulic force and pressure gauge1/2 NPTF hydraulic gauge
