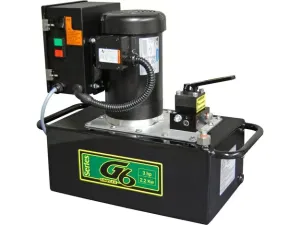

Enerpac G6376L 700 bar Electric Hydraulic Pump

Enerpac G6376L; 700 bar (10,000 psi), 100 in³/min (1638.7 cm³/min) oil flow, 37.85 l usable oil, 2.2 kW 230 V 3-phase electric hydraulic pump with 4/3 locking solenoid valve.

EnerpacMFR # G6376LSKU # YLSJPZQDGONLCSI

Dimension E637,5 mm (25.10 in)

Output Flow Rate 1st Stage12290,3 cm³/min (750 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Motor Phases3

Dimension D322,8 mm (12.71 in)

Have questions?Chat on WhatsApp

About This Product

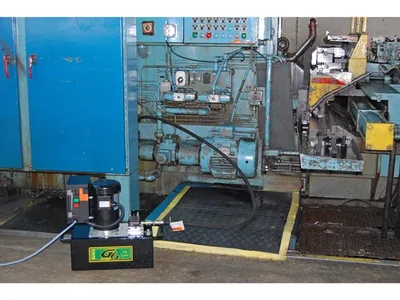

G6376L is a two-stage electric hydraulic pump from the G6 series (discontinued). It has a 4-way, 3-position locking solenoid valve and works with double-acting cylinders. Maximum operating pressure is 700 bar (10,000 psi) and second-stage flow is 100 in³/min (1638.7 cm³/min). It is driven by a 3 hp (2.2 kW), 3,450 rpm, 3-phase, 230 V motor and draws 9.5 A at full load. Sound level is 80 dBA, usable oil capacity is 10 gallons (37.85 l) and weight is 100.2 kg. Its high flow rate suits mid to large tools and cylinders and multi-cylinder systems in heavy lifting, high-tonnage and large positioning jobs.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
4-way, 3-position locking solenoid valve; compatible with double-acting cylinders
Two-stage operation for fast tool performance
2.2 kW (3 hp), 230 V 3-phase motor; 9.5 A at full load
Quiet running at 80 dBA
10 gallon (37.85 l) usable oil, 100.2 kg

Enerpac G6376L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

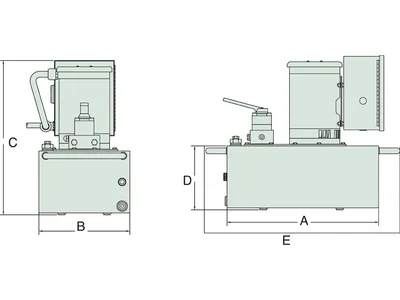

Dimension E637,5 mm (25.10 in)

Output Flow Rate 1st Stage12290,3 cm³/min (750 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Motor Phases3

Dimension D322,8 mm (12.71 in)

Dimension C628,9 mm (24.76 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B298,5 mm (11.75 in)

Motor Voltage230 V

Usable Oil Capacity37,85 l (10 gal)

1st Stage Pressure Rating103 bar (1,500 psi)

Product TypePower Pump - Electric

Output Flow Rate 2nd Stage1638,7 cm³/min (100 in³/min)

Motor Speed3,450 rpm

Sound Level80 dB(A)

Valve OperationSolenoid

Pump Valve Type4-Way, 3-Position, Locking

Motor Size2,2 kW (3 hp)

SeriesG6 (Discontinued)

Pump Power SourceElectric

Current Draw9.5 A

Cylinder CompatibilityDouble-Acting

Dimension A498,3 mm (19.62 in)

Product LineHydraulic Tools

Weight100,2 kg (221 lbs)
