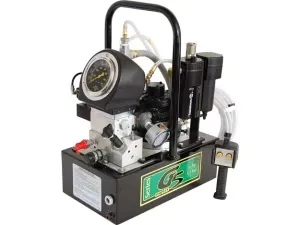

Enerpac G5773T 700 bar Air Torque Wrench Pump

Enerpac G5773T; 901.3 cm³/min at 700 bar, 9.46 l usable oil, air-driven 3 hp hydraulic torque wrench pump with 4/2 solenoid valve.

EnerpacMFR # G5773TSKU # YLSNBDVMBH6V8

Dimension E336,3 mm (13.24 in)

Output Flow Rate 1st Stage11470,9 cm³/min (700 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension D151,4 mm (5.96 in)

Dimension C567,4 mm (22.34 in)

Have questions?Chat on WhatsApp

About This Product

The G5773T is an air-driven bolting pump designed to power hydraulic torque wrenches. It is driven by a 3 hp rotary air vane motor (3,000 rpm), with an air supply of 6 bar (90 psi) at 50 cfm, and uses a 4/2 solenoid valve. The two-stage pump delivers 901.3 cm³/min at its 700 bar (10,000 psi) maximum pressure. The higher cross-over pressure shortens cycle times and speeds up tool operation. Usable oil capacity is 9.46 l and weight is 38.6 kg. All models include a filter-lubricator assembly, air muffler, adjustable relief valve and a 3.65 m remote controlled pendant.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
Two-stage pump: higher cross-over pressure for faster cycle times
3 hp rotary air vane motor, 3,000 rpm
4/2 solenoid valve for torque wrench control
9.46 l usable oil capacity
Filter-lubricator assembly, air muffler and 3.65 m remote controlled pendant

Enerpac G5773T

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E336,3 mm (13.24 in)

Output Flow Rate 1st Stage11470,9 cm³/min (700 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension D151,4 mm (5.96 in)

Dimension C567,4 mm (22.34 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B247,7 mm (9.75 in)

Usable Oil Capacity9,46 l (2.5 gal)

1st Stage Pressure Rating83 bar (1,200 psi)

Product TypeTorque Wrench Pump - Air

Output Flow Rate 2nd Stage901,3 cm³/min (55 in³/min)

Motor Speed3,000 rpm

Motor Air Pressure6 bar (90 psi)

Valve OperationSolenoid

Pump Valve Type4-Way, 2-Position

Motor Size3 hp

SeriesG5 TW Air (Discontinued)

Pump Power SourceAir

Dimension A431,8 mm (17.00 in)

Product LineBolting Tools

Weight38,6 kg (85 lbs)

Motor Air Consumption1,42 m³/min (50 cfm)
