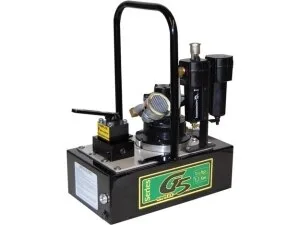

Enerpac G5762 700 bar air hydraulic pump

Enerpac G5762; 700 bar (10,000 psi) max pressure, 901.3 cm³/min oil flow, 5.68 l usable oil, 3/3 solenoid valve, 3 hp air-driven hydraulic pump.

EnerpacMFR # G5762SKU # YLS9PWOPUWIVIZ6

Output Flow Rate 1st Stage11470,9 cm³/min (700 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

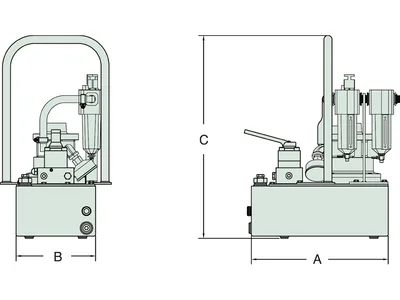

Dimension C567,4 mm (22.34 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B222,3 mm (8.75 in)

Have questions?Chat on WhatsApp

About This Product

G5762 is a two-stage air-driven hydraulic power pump from the G5 Air series (discontinued). Its 3 hp rotary air vane motor runs at 3,000 rpm; the air supply is rated at 6 bar (90 psi) and 50 cfm (1.42 m³/min). The 3-way, 3-position solenoid valve makes it suitable for single-acting cylinders. In the second stage it delivers 901.3 cm³/min oil flow at 700 bar (10,000 psi). Usable oil capacity is 5.68 l (1.5 gallons) and weight is 23.6 kg. All models include a filter-lubricator assembly, air muffler and carry handlebar; an external adjustable relief valve is standard. It is suited to driving mid size hydraulic cylinders and tools. It runs on compressed air where electric power is unavailable or not preferred.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
3 hp rotary air vane motor, 3,000 rpm; 6 bar (90 psi) air supply
Filter-lubricator assembly, air muffler and carry handlebar as standard
Precision valve for reliability and secure load holding; external adjustable relief
3-way, 3-position solenoid valve; compatible with single-acting cylinders
5.68 l (1.5 gallon) usable oil capacity, 23.6 kg

Enerpac G5762

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate 1st Stage11470,9 cm³/min (700 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension C567,4 mm (22.34 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B222,3 mm (8.75 in)

Usable Oil Capacity5,68 l (1.5 gal)

1st Stage Pressure Rating76 bar (1,100 psi)

Product TypePower Pump - Air

Output Flow Rate 2nd Stage901,3 cm³/min (55 in³/min)

Motor Speed3,000 rpm

Motor Air Pressure6 bar (90 psi)

Valve OperationSolenoid

Pump Valve Type3-Way, 3-Position

Motor Size3 hp

SeriesG5 Air (Discontinued)

Pump Power SourceAir

Cylinder CompatibilitySingle-Acting

Dimension A384,3 mm (15.13 in)

Product LineHydraulic Tools

Weight23,6 kg (52 lbs)

Motor Air Consumption1,42 m³/min (50 cfm)
