How can I get a price quote for Enerpac G5132?

You can request a fast quote for Enerpac G5132 from Yılsa Engineering. Reference part number YLSW57YWJPW1SMJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac G5132 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac G5132 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac G5132?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

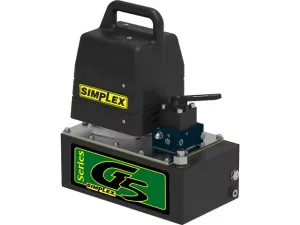

Enerpac G5132 700 bar Electric Hydraulic Pump

Enerpac G5132; 700 bar (10,000 psi), 1.1 kW (1.5 hp) 115V motor, 3/3 manual valve, 5.68 l usable oil, electric hydraulic pump.

EnerpacMFR # G5132SKU # YLSW57YWJPW1SMJ

Output Flow Rate 1st Stage9012,9 cm³/min (550 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Motor Phases1

Dimension C472,2 mm (18.59 in)

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

G5132 is a G5 Series two-stage electric hydraulic pump. It runs on a 115 V, 60 Hz, single-phase 1.1 kW (1.5 hp) permanent magnet motor (3,000 rpm) and delivers up to 700 bar (10,000 psi). It has a 3/3 manual valve and 5.68 l (1.5 gallon) usable oil capacity, and is compatible with single-acting cylinders. Second-stage oil flow is 901.3 cm³/min (55 in³/min) and first-stage flow is 550 in³/min; first-stage pressure rating is 1,100 psi. It draws 18 A at full load and weighs 30.4 kg. It comes standard with a 15 ft (about 4.6 m) pendant. It is suited to mid to large size hydraulic cylinders and tools. The G5 Series is listed as discontinued.

Features and Benefits

1.1 kW (1.5 hp) continuous-duty motor, 115 V / 60 Hz, 3,000 rpm
Two-stage pump with higher crossover pressure for faster cycle times
700 bar (10,000 psi) maximum pressure, 901.3 cm³/min second-stage flow
3/3 manual valve; compatible with single-acting cylinders
5.68 l usable oil capacity, 30.4 kg weight
Low startup voltage, 18 A at full load; standard 15 ft pendant

Enerpac G5132

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate 1st Stage9012,9 cm³/min (550 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Motor Phases1

Dimension C472,2 mm (18.59 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B222,3 mm (8.75 in)

Motor Voltage115 V

Usable Oil Capacity5,68 l (1.5 gal)

Motor Frequency60 Hz

1st Stage Pressure Rating76 bar (1,100 psi)

Product TypePower Pump - Electric

Output Flow Rate 2nd Stage901,3 cm³/min (55 in³/min)

Motor Speed3,000 rpm

Valve OperationManual

Pump Valve Type3-Way, 3-Position

Motor Size1,1 kW (1.5 hp)

SeriesG5 (Discontinued)

Pump Power SourceElectric

Current Draw18 A

Cylinder CompatibilitySingle-Acting

Dimension A384,3 mm (15.13 in)

Product LineHydraulic Tools

Weight30,4 kg (67 lbs)
