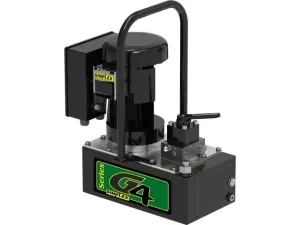

Enerpac G4132 700 bar Electric Hydraulic Pump

Enerpac G4132; 700 bar (10,000 psi), 5.68 l usable oil, 115V 1.5 hp electric hydraulic pump with manual 3-way, 3-position valve for single-acting cylinders.

EnerpacMFR # G4132SKU # YLSL4PC2FAN1UEL

Output Flow Rate 1st Stage6554,8 cm³/min (400 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Motor Phases1

Dimension C567,4 mm (22.34 in)

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

G4132 is an electric hydraulic power pump from the G4 series (Simplex branded). The two-stage pump delivers 901.3 cm³/min (55 in³/min) of oil flow at a maximum operating pressure of 700 bar (10,000 psi). The first-stage pressure rating is 1,100 psi. The pump is driven by a 115V, 60 Hz, single-phase, 1.5 hp (1.1 kW), 1,725 rpm induction motor and draws 16 A at full load. Usable oil capacity is 5.68 l (1.5 gal) and weight is 24 kg. The manually operated 3-way, 3-position valve is suited to single-acting cylinders. It is used with mid-size hydraulic tools and cylinders in clamping, holding, positioning, lifting and lowering applications. The G4 series is discontinued.

Features and Benefits

Two-stage pump: higher cross-over pressure for faster cycle times
700 bar (10,000 psi) maximum operating pressure
115V, 60 Hz, 1.5 hp (1.1 kW) continuous-duty motor with low startup voltage
Manual 3-way, 3-position valve; compatible with single-acting cylinders
5.68 l (1.5 gal) usable oil capacity, 24 kg

Enerpac G4132

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate 1st Stage6554,8 cm³/min (400 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Motor Phases1

Dimension C567,4 mm (22.34 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B222,3 mm (8.75 in)

Motor Voltage115 V

Usable Oil Capacity5,68 l (1.5 gal)

Motor Frequency60 Hz

1st Stage Pressure Rating76 bar (1,100 psi)

Product TypePower Pump - Electric

Output Flow Rate 2nd Stage901,3 cm³/min (55 in³/min)

Motor Speed1,725 rpm

Valve OperationManual

Pump Valve Type3-Way, 3-Position

Motor Size1,1 kW (1.5 hp)

SeriesG4 (Discontinued)

Pump Power SourceElectric

Current Draw16 A

Cylinder CompatibilitySingle-Acting

Dimension A384,3 mm (15.13 in)

Product LineHydraulic Tools

Weight24 kg (53 lbs)
