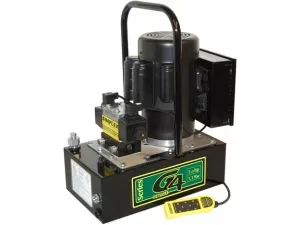

Enerpac G4102 700 bar electric hydraulic pump

Enerpac G4102; 700 bar (10,000 psi), 1.5 hp (1.1 kW) 115V, 5.68 l usable oil, two-stage electric hydraulic pump with dump valve.

EnerpacMFR # G4102SKU # YLSURQP5ZEKKKZ2

Output Flow Rate 1st Stage6554,8 cm³/min (400 in³/min)

2nd Stage Pressure Rating700 bar (10,000 psi)

Motor Phases1

Dimension C567,4 mm (22.34 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B222,3 mm (8.75 in)

Have questions?Chat on WhatsApp

About This Product

The G4102 is an electric hydraulic pump from the Simplex G4 series. It runs on a 115V, 60 Hz, single-phase 1.5 hp (1.1 kW) induction motor (1,725 rpm) and draws 16 A at full load. Maximum pressure is 700 bar (10,000 psi) and usable oil capacity is 1.5 gallon (5.68 l). The two-stage design delivers 400 in³/min first-stage flow (at 1,100 psi) and 55 in³/min (901.3 cm³/min) second-stage flow (at 10,000 psi). It has a manual dump valve, is compatible with single-acting cylinders and weighs 17.2 kg. It suits medium-size tools and cylinders in clamping, holding, positioning, lifting and lowering applications.

Features and Benefits

700 bar (10,000 psi) maximum pressure
Continuous duty 1.5 hp (1.1 kW), 115V - 60 Hz motor
Two-stage pump with higher cross-over pressure for faster cycle times
Manual dump valve, compatible with single-acting cylinders
Low startup voltage; 230V models available

Enerpac G4102

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate 1st Stage6554,8 cm³/min (400 in³/min)

2nd Stage Pressure Rating700 bar (10,000 psi)

Motor Phases1

Dimension C567,4 mm (22.34 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B222,3 mm (8.75 in)

Motor Voltage115 V

Usable Oil Capacity5,68 l (1.5 gal)

Motor Frequency60 Hz

1st Stage Pressure Rating76 bar (1,100 psi)

Product TypePower Pump - Electric

Output Flow Rate 2nd Stage901,3 cm³/min (55 in³/min)

Motor Speed1,725 rpm

Valve OperationManual

Motor Size1,1 kW (1.5 hp)

SeriesG4 (Discontinued)

Pump Power SourceElectric

Pump OperationDump

Current Draw16 A

Cylinder CompatibilitySingle-Acting

Dimension A384,3 mm (15.13 in)

Product LineHydraulic Tools

Weight17,2 kg (38 lbs)
