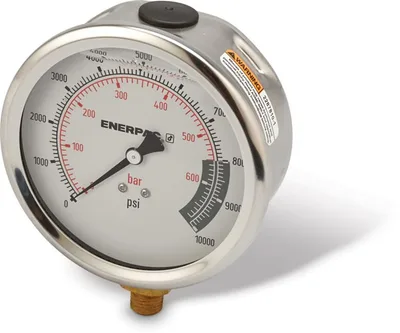

Enerpac G4088L 700 bar pressure gauge

Enerpac G4088L; 700 bar (10,000 psi) maximum pressure, 100 mm face, 1/4 NPTF lower mount, glycerine-filled hydraulic pressure gauge.

EnerpacMFR # G4088LSKU # CEY-55221B12DA4E

Dimension EN/A mm

Accuracy (Full Scale)1 %

Country of OriginChina

Dimension D121 mm (4.8 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The G4088L is a glycerine-filled hydraulic pressure gauge from the Enerpac G series. Maximum operating pressure is 700 bar (10,000 psi) and the face diameter is 100 mm; it is lower mount with a 1/4 NPTF connection. The dual-scale face reads in both bar and psi. Major graduation is 100 bar (1000 psi), minor graduation is 10 bar (100 psi), and accuracy is 1% of full scale. The glycerine fill protects the pressure sensing parts from vibration, sudden pressure changes and moisture. It is used to monitor pressure for safe operation of hydraulic tools and equipment.

Features and Benefits

Calibrated in dual scale reading in bar and psi
Glycerine-sealed and dampened pressure sensing parts for long life
Includes safety blow-out disk and pressure equalizing membrane
1% of full scale accuracy
Gauge snubbers or needle valves recommended for high cycle applications

Enerpac G4088L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension EN/A mm

Accuracy (Full Scale)1 %

Country of OriginChina

Dimension D121 mm (4.8 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B29 mm (1.15 in)

Minor Graduation10 bar (100 psi)

StyleGlycerine Filled

Major Graduation100 bar (1000 psi)

Product TypePressure Gauge

SeriesG

Dimension A100 mm (4 in)

Product LineIndustrial Tools

Port Thread1/4 NPTF

Face Diameter100 mm

MountingLower Mount

Documents & CAD

Series documents 3· shared by this product series

BrochureG-H-Series Hydraulic Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

DocumentGaugePDF·225 KB·English

CAD Files 3

3D Model
