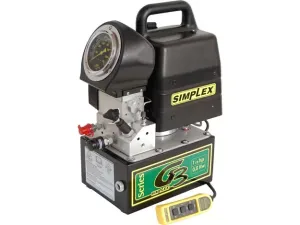

Enerpac G3173T 700 bar Torque Wrench Pump

Enerpac G3173T; 753.8 cm³/min at 700 bar, 9.46 l usable oil, 115 V electric hydraulic torque wrench pump with 4/2 solenoid valve.

EnerpacMFR # G3173TSKU # YLSSNHRKWQKM9L9

Output Flow Rate 1st Stage8603,2 cm³/min (525 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

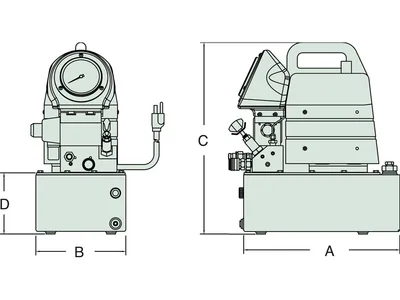

Dimension D151,4 mm (5.96 in)

Dimension C482,6 mm (19 in)

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

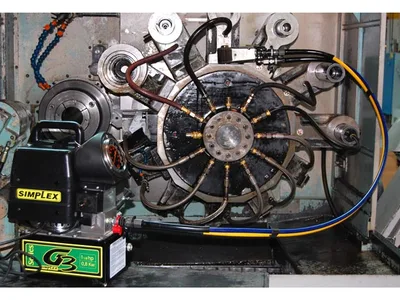

The G3173T is a heavy-duty electric bolting pump designed to power small to mid-sized hydraulic torque wrenches. It uses a 4/2 solenoid valve and is driven by a 115 V, 60 Hz, 1.13 hp universal motor. The two-stage pump delivers 753.8 cm³/min at its 700 bar (10,000 psi) maximum operating pressure. First-stage flow is 8603.2 cm³/min. The higher cross-over pressure shortens torque wrench cycle times. Usable oil capacity is 9.46 l and weight is 31.3 kg. It is used in hydraulic torque wrench applications such as tightening and loosening flange and bolted joints.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
Two-stage pump: higher cross-over pressure for faster cycle times
4/2 solenoid valve for torque wrench control
115 V, 60 Hz, 1.13 hp universal motor
9.46 l usable oil capacity

Enerpac G3173T

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate 1st Stage8603,2 cm³/min (525 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension D151,4 mm (5.96 in)

Dimension C482,6 mm (19 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B247,7 mm (9.75 in)

Motor Voltage115 V

Usable Oil Capacity9,46 l (2.5 gal)

Motor Frequency60 Hz

1st Stage Pressure Rating76 bar (1,100 psi)

Product TypeTorque Wrench Pump - Electric

Output Flow Rate 2nd Stage753,8 cm³/min (46 in³/min)

Valve OperationSolenoid

Pump Valve Type4-Way, 2-Position

Motor Size1.13 hp

SeriesG3 TW (Discontinued)

Pump Power SourceElectric

Current Draw16 A

Dimension A431,8 mm (17.00 in)

Product LineBolting Tools

Weight31,3 kg (69 lbs)
