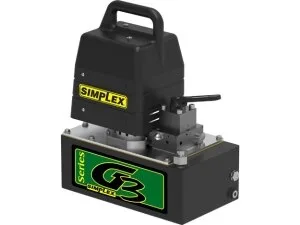

Enerpac G3132 700 bar Electric Hydraulic Pump

Enerpac G3132 is a two-stage, 115V electric hydraulic power pump from the Simplex G3 series. Its 3-way, 3-position (3/3) manual valve is designed for operating single-acting cylinders and hydraulic tools. The welded steel reservoir holds 5.68 l (1.5 gal) of usable oil. The pump has a maximum operating pressure of 700 bar (10,000 psi) and delivers 753.8 cm³/min (46 in³/min) in the second stage. The first stage delivers 525 in³/min (approx. 8,600 cm³/min) up to 1,100 psi (approx. 76 bar). The 0.8 kW (1.13 hp), 21,000 rpm universal motor runs on 115V, 60 Hz, single-phase power and draws 16 A at full load. The pump weighs 24 kg (53 lb). This continuous-duty pump is suited to powering small and medium-sized hydraulic cylinders and tools. It comes with a 4.57 m (15 ft) remote control pendant. A metal reservoir sight gauge makes the oil level easy to check.
