How can I get a price quote for Enerpac G2537R?

You can request a fast quote for Enerpac G2537R from Yılsa Engineering. Reference part number CEY-55221B12D8AF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac G2537R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac G2537R genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac G2537R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

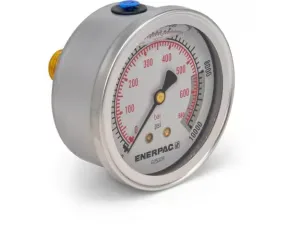

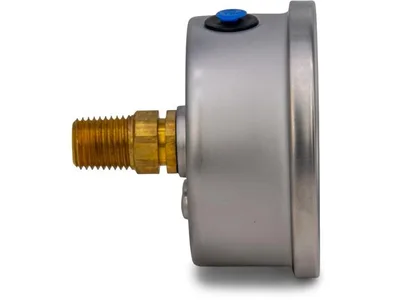

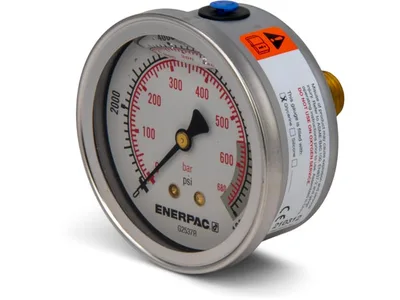

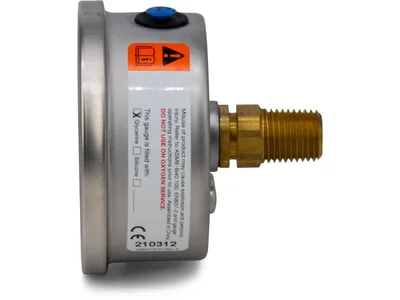

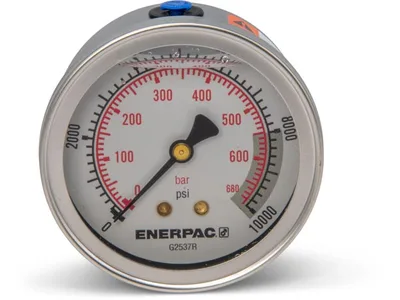

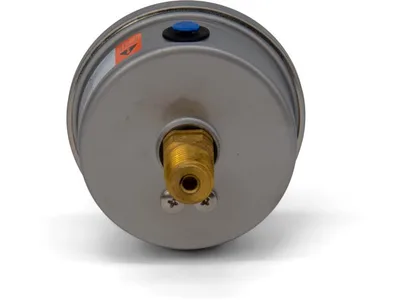

Enerpac G2537R 700 bar Pressure Gauge

Enerpac G2537R; 0–700 bar (10,000 psi), 63 mm face, center rear mount 1/4" NPTF, glycerine-filled hydraulic pressure gauge with ±1.5% accuracy.

EnerpacMFR # G2537RSKU # CEY-55221B12D8AF

Dimension E63 mm (2.48 in)

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension DN/A mm

Dimension C1/4" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The G2537R is a glycerine-filled hydraulic pressure gauge from the Enerpac G series. Its 63 mm (2.5 in) face carries dual bar and psi scales and reads up to a maximum operating pressure of 700 bar (10,000 psi). Major graduation is 100 bar / 2000 psi, minor graduation 10 bar / 200 psi, with ±1.5% full-scale accuracy. The center rear mount body has a 1/4" NPTF thread, convenient for panel or manifold mounting. The glycerine fill protects the sensing parts from vibration, sudden pressure changes and moisture, and the gauge includes a safety blow-out disk and a pressure equalizing membrane. It is used for pressure monitoring on 700 bar hydraulic pumps, cylinders and workholding systems. A gauge snubber or needle valve is recommended for high-cycle applications.

Features and Benefits

Dual scale face reading in bar and psi
0–700 bar (10,000 psi) range, ±1.5% full-scale accuracy
Pressure sensing parts sealed and dampened by glycerine for long life
Safety blow-out disk and pressure equalizing membrane
Center rear mount 1/4" NPTF connection, 63 mm face
Gauge snubber or needle valve recommended for high-cycle applications

Enerpac G2537R

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E63 mm (2.48 in)

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension DN/A mm

Dimension C1/4" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B37 mm (1.46 in)

Minor Graduation10 bar (200 psi)

StyleGlycerine Filled

Major Graduation100 bar (2000 psi)

Product TypePressure Gauge

SeriesG

Dimension A63 mm (2.5 in)

Product LineIndustrial Tools, Workholding Tools

Port Thread1/4 NPTF

Face Diameter63 mm

MountingCenter Rear

Documents & CAD

For this product 1

DocumentGaugePDF·225 KB·English

Series documents 2· shared by this product series

BrochureG-H-Series Hydraulic Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

G2537RG 2537RG-2537RG2537 Rg2537rEnerpac G2537RG2537R pressure gaugeG2537R hydraulic gaugeEnerpac G series gaugeEnerpac pressure gauge700 bar pressure gauge10000 psi hydraulic gaugeglycerine filled pressure gauge 10000 psi2.5 inch hydraulic gauge63 mm pressure gaugecenter rear mount pressure gauge1/4 NPTF pressure gauge
