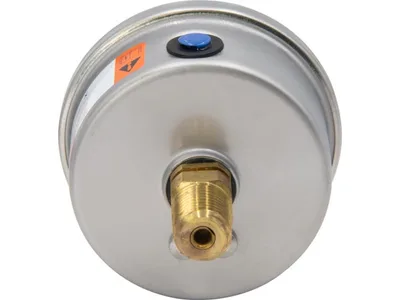

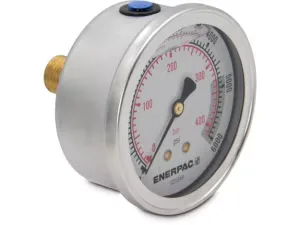

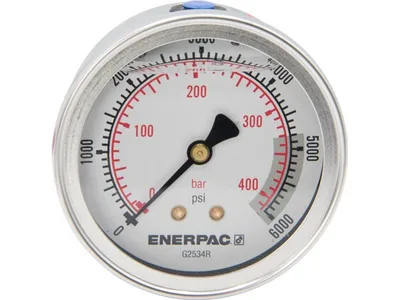

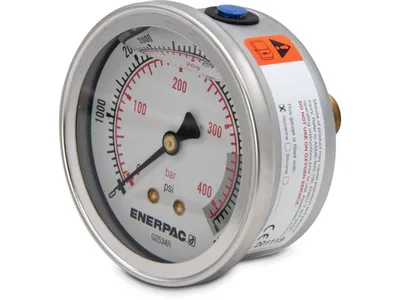

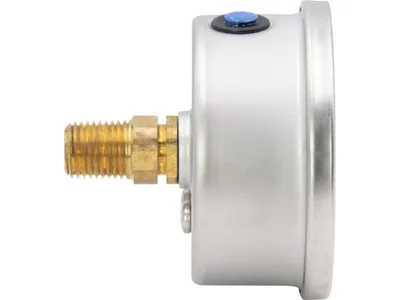

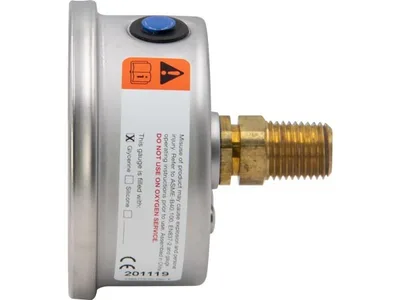

Enerpac G2534R 400 bar Pressure Gauge

Enerpac G2534R; 400 bar (6,000 psi) maximum, 63 mm (2.5 in) face, center rear mount, 1/4 NPTF thread, glycerine-filled hydraulic pressure gauge.

EnerpacMFR # G2534RSKU # CEY-8EF3B0345B46

Dimension E63 mm (2.48 in)

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension DN/A mm

Dimension C1/4" NPTF mm

Maximum Operating Pressure400 bar (6,000 psi)

Have questions?Chat on WhatsApp

About This Product

The G2534R is a glycerine-filled hydraulic pressure gauge from the Enerpac G series. The glycerine fill protects the pressure sensing parts from vibration, sudden pressure changes and moisture. The face is calibrated with dual bar and psi scales. It has a maximum operating pressure of 400 bar (6,000 psi), a 63 mm (2.5 in) face and an accuracy of ±1.5% of full scale. Major graduation is 100 bar / 1,000 psi and minor graduation is 10 bar / 100 psi. The gauge is center rear mounted with a 1/4 NPTF thread. It is used to monitor pump or circuit pressure on industrial hydraulic tools and workholding systems. For high-cycle applications, a gauge snubber or needle valve is recommended.

Features and Benefits

Calibrated dual scale reading in bar and psi
Pressure sensing parts sealed and dampened by glycerine for long life
Safety blow-out disk and pressure equalizing membrane
±1.5% accuracy of full scale
Center rear mount with 1/4 NPTF thread

Enerpac G2534R

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E63 mm (2.48 in)

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension DN/A mm

Dimension C1/4" NPTF mm

Maximum Operating Pressure400 bar (6,000 psi)

Dimension B37 mm (1.46 in)

Minor Graduation10 bar (100 psi)

StyleGlycerine Filled

Major Graduation100 bar (1000 psi)

Product TypePressure Gauge

SeriesG

Dimension A63 mm (2.5 in)

Product LineIndustrial Tools, Workholding Tools

Port Thread1/4 NPTF

Face Diameter63 mm

MountingCenter Rear
