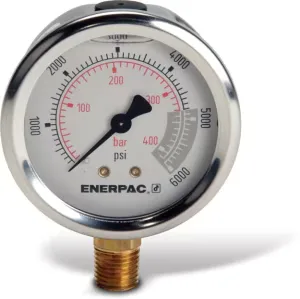

Enerpac G2517L 400 bar Pressure Gauge

Enerpac G2517L; 400 bar (6,000 psi) max. operating pressure, 63 mm (2.5 in) face, lower-mount 1/4 NPTF connection, glycerine-filled hydraulic pressure gauge.

EnerpacMFR # G2517LSKU # CEY-8EF3B0345B48

Dimension EN/A mm

Accuracy (Full Scale)1.5 %

Country of OriginUnited States

Dimension D84 mm (3.31 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure400 bar (6,000 psi)

Have questions?Chat on WhatsApp

About This Product

G2517L is a glycerine-filled hydraulic pressure gauge from the Enerpac G-Series. The glycerine fill protects the pressure-sensing parts from vibration, sudden pressure changes and moisture. The gauge has a maximum operating pressure of 400 bar (6,000 psi) and an accuracy of 1.5% of full scale. On the dual-scale face, the bar scale has 10 bar minor and 100 bar major graduations; the psi scale has 100 psi minor and 1,000 psi major graduations. Face diameter is 63 mm (2.5 in) and the connection is a lower-mount 1/4 NPTF thread. G2517L is used to monitor pressures up to 400 bar on industrial hydraulic tools and workholding systems. For high-cycle applications, a gauge snubber or needle valve is recommended.

Features and Benefits

400 bar (6,000 psi) maximum operating pressure
Dual-scale face calibrated in bar and psi
Accuracy of 1.5% of full scale
Pressure-sensing parts sealed and dampened by glycerine
Safety blow-out disk and pressure equalizing membrane
63 mm face, lower-mount 1/4 NPTF connection

Enerpac G2517L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension EN/A mm

Accuracy (Full Scale)1.5 %

Country of OriginUnited States

Dimension D84 mm (3.31 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure400 bar (6,000 psi)

Dimension B37 mm (1.46 in)

Minor Graduation10 bar (100 psi)

StyleGlycerine Filled

Major Graduation100 bar (1000 psi)

Product TypePressure Gauge

SeriesG

Dimension A63 mm (2.5 in)

Product LineIndustrial Tools, Workholding Tools

Port Thread1/4 NPTF

Face Diameter63 mm

MountingLower Mount

Documents & CAD

For this product 1

DocumentGaugePDF·225 KB·English

Series documents 2· shared by this product series

BrochureG-H-Series Hydraulic Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model
