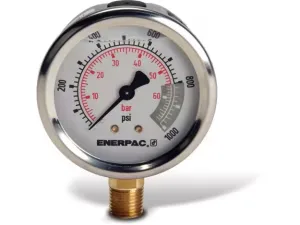

Enerpac G2514SL 70 bar Hydraulic Gauge

Enerpac G2514SL; 70 bar (1,000 psi) maximum pressure, 63 mm face, lower mount, glycerine-filled hydraulic pressure gauge.

EnerpacMFR # G2514SLSKU # CEY-7B4B2D99BBB0

Dimension GSAE#4

Maximum Operating Pressure70 bar (1,000 psi)

Dimension D63 mm

Minor Graduation1 bar (20 psi)

StyleGlycerine Filled

Major Graduation10 bar (100 psi)

Have questions?Chat on WhatsApp

About This Product

G2514SL is an Enerpac G-Series glycerine-filled hydraulic pressure gauge. It has a 63 mm face, lower mount and an SAE#4 connection thread, with a maximum operating pressure of 70 bar (1,000 psi). The dual-scale face shows bar and psi readings together. Major graduation is 10 bar (100 psi) and minor graduation is 1 bar (20 psi). The glycerine fill protects the pressure sensing parts from vibration, sudden pressure changes and moisture. It is used to monitor pressure for the safe use of hydraulic tools and equipment. For high-cycle applications, gauge snubbers or needle valves are recommended.

Features and Benefits

±1.5% of full scale accuracy
Glycerine fill: dampens and seals pressure sensing parts for long life under vibration and pressure spikes
Safety blow-out disk and pressure equalizing membrane help prevent overpressurization
Copper alloy, coiled safety Bourdon tube for 70 bar and higher
Dual bar and psi scale on a 63 mm face

Enerpac G2514SL

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension GSAE#4

Maximum Operating Pressure70 bar (1,000 psi)

Dimension D63 mm

Minor Graduation1 bar (20 psi)

StyleGlycerine Filled

Major Graduation10 bar (100 psi)

Product TypePressure Gauge

SeriesG

Product LineWorkholding Tools

Dimension B31 mm

Port ThreadSAE#4

MountingLower Mount

Dimension A93 mm
