How can I get a price quote for Enerpac G2514L?

You can request a fast quote for Enerpac G2514L from Yılsa Engineering. Reference part number CEY-8EF3B0345B4A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac G2514L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac G2514L genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac G2514L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

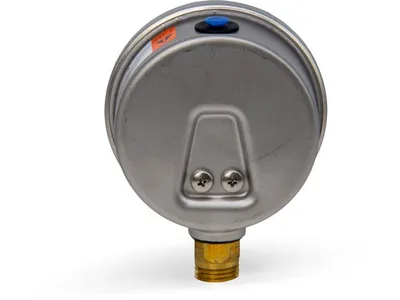

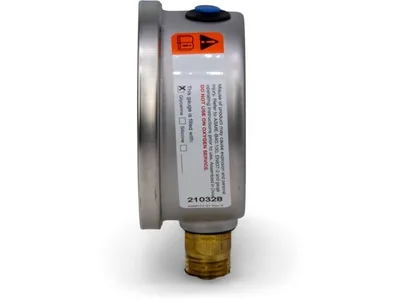

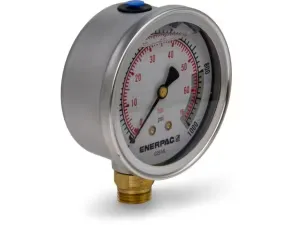

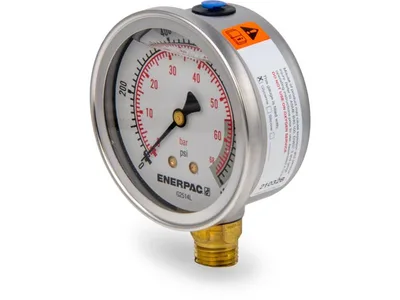

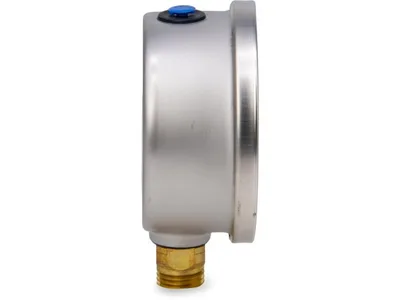

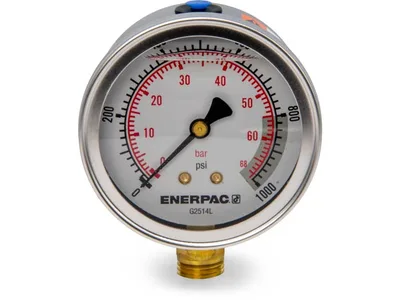

Enerpac G2514L 70 bar Glycerine Pressure Gauge

Enerpac G2514L; 0–70 bar (0–1,000 psi), 63 mm (2.5") face, lower mount, 1/4" NPTF, glycerine-filled hydraulic pressure gauge.

EnerpacMFR # G2514LSKU # CEY-8EF3B0345B4A

Dimension EN/A mm

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension D84 mm (3.31 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure70 bar (1,000 psi)

Have questions?Chat on WhatsApp

About This Product

The Enerpac G2514L is a glycerine-filled hydraulic pressure gauge from the G series. The glycerine protects the pressure sensing parts from vibration, sudden pressure changes and moisture. The face shows a dual scale in both bar and psi. Maximum operating pressure is 70 bar (1,000 psi). Face diameter is 63 mm (2.5"), with a lower mount 1/4" NPTF connection. Accuracy is 1.5% of full scale. Graduations are 1 bar minor / 10 bar major (20 psi / 100 psi). Dimension D is 84 mm and dimension B is 37 mm. Country of origin is China. It includes a safety blow-out disk and a pressure equalizing membrane. It is used to monitor pressure for safe operation of hydraulic tools and equipment. For high-cycle applications, gauge snubbers or needle valves are recommended.

Features and Benefits

0–70 bar (0–1,000 psi) range with dual bar and psi scale
Accuracy of 1.5% of full scale
Glycerine filled; pressure sensing parts sealed and dampened for long life
Safety blow-out disk and pressure equalizing membrane
63 mm face, lower mount 1/4" NPTF connection; easy to install

Enerpac G2514L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension EN/A mm

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension D84 mm (3.31 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure70 bar (1,000 psi)

Dimension B37 mm (1.46 in)

Minor Graduation1 bar (20 psi)

StyleGlycerine Filled

Major Graduation10 bar (100 psi)

Product TypePressure Gauge

SeriesG

Dimension A63 mm (2.5 in)

Product LineIndustrial Tools, Workholding Tools

Port Thread1/4 NPTF

Face Diameter63 mm

MountingLower Mount

Documents & CAD

Series documents 3· shared by this product series

BrochureG-H-Series Hydraulic Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

DocumentGaugePDF·225 KB·English

CAD Files 3

3D Model
