How can I get a price quote for Enerpac G2512L?

You can request a fast quote for Enerpac G2512L from Yılsa Engineering. Reference part number CEY-8EF3B0345B4C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac G2512L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac G2512L genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac G2512L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

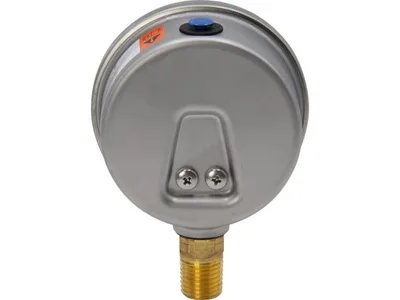

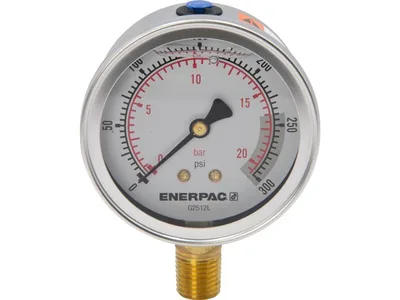

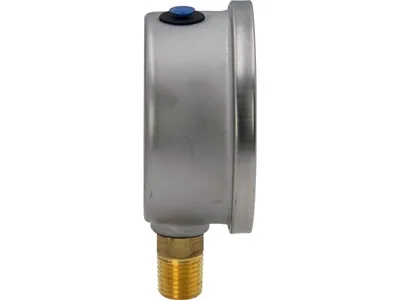

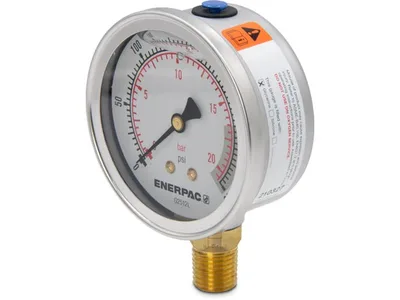

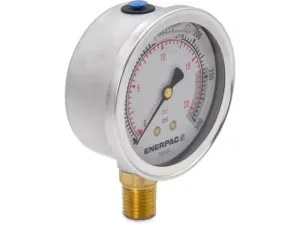

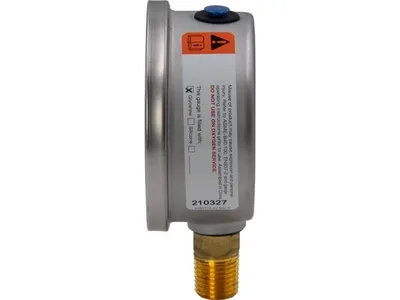

Enerpac G2512L 20 bar Pressure Gauge

Enerpac G2512L; 20 bar (300 psi) range, 63 mm face, 1/4 NPTF lower mount, glycerine-filled hydraulic pressure gauge.

EnerpacMFR # G2512LSKU # CEY-8EF3B0345B4C

Dimension EN/A mm

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension D84 mm (3.31 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure20 bar (300 psi)

Have questions?Chat on WhatsApp

About This Product

G2512L is a G-Series liquid-filled hydraulic pressure gauge. Its maximum pressure is 20 bar (300 psi) and it has a 63 mm (2.5 in.) face. The dual scale face shows psi and bar readings together; accuracy is 1.5% of full scale. The glycerine fill protects the pressure sensing parts from vibration, sudden pressure changes and moisture. The connection is 1/4 NPTF thread, lower mount. It is used to monitor pressure for safe operation of hydraulic tools and equipment. Gauge snubbers or needle valves are recommended for high-cycle applications.

Features and Benefits

Dual scale face in psi and bar
Glycerine fill protects against vibration, sudden pressure changes and moisture
Safety blow-out disk and pressure equalizing membrane
63 mm face, 1/4 NPTF lower mount
1.5% of full scale accuracy

Enerpac G2512L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension EN/A mm

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension D84 mm (3.31 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure20 bar (300 psi)

Dimension B37 mm (1.46 in)

Minor Graduation0,50 bar (5 psi)

StyleGlycerine Filled

Major Graduation5 bar (50 psi)

Product TypePressure Gauge

SeriesG

Dimension A63 mm (2.5 in)

Product LineIndustrial Tools, Workholding Tools

Port Thread1/4 NPTF

Face Diameter63 mm

MountingLower Mount

Documents & CAD

Series documents 3· shared by this product series

BrochureG-H-Series Hydraulic Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

DocumentGaugePDF·225 KB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

G2512LG-2512LG 2512LG2512 LEnerpac G2512LG2512L gaugeG2512L pressure gaugeG2512L glycerine filled gaugeEnerpac G series gaugeEnerpac G series liquid filled gauge20 bar pressure gauge300 psi pressure gauge20 bar hydraulic gauge300 psi hydraulic pressure gauge63 mm glycerine filled gauge2.5 inch pressure gauge1/4 NPTF lower mount gaugeglycerine filled pressure gaugedual scale psi bar gaugehydraulic pressure gauge 63 mm
