How can I get a price quote for Enerpac FZ1633?

You can request a fast quote for Enerpac FZ1633 from Yılsa Engineering. Reference part number CEY-7B4B2D99F52C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac FZ1633 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac FZ1633 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac FZ1633?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

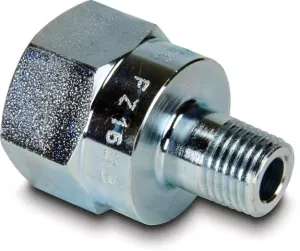

Enerpac FZ1633 700 bar Adapter

Enerpac FZ1633; 700 bar (10,000 psi) maximum operating pressure, high pressure adapter with 1/2" NPTF female to 1/4" NPTF male connection.

EnerpacMFR # FZ1633SKU # CEY-7B4B2D99F52C

Country of OriginUnited States

Connection From1/2" NPTF Female

Dimension D1/4" -18 NPTF mm

Connection To1/4" NPTF Male

Dimension C1/2" -27 NPT mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

FZ1633 is a high pressure hydraulic adapter from the FZ series. It has a 1/2" NPTF female connection on one end and a 1/4" NPTF male (1/4"-18 NPTF) connection on the other. Maximum operating pressure is 700 bar (10,000 psi). Dimensions: A is 30 mm (1.18"), B is 19 mm (0.75"). It is used in hydraulic systems to match different thread sizes when connecting hoses, cylinders, components, power sources, tubes and gauges.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
1/2" NPTF female to 1/4" NPTF male connection
Adapter type; A 30 mm, B 19 mm
Matches hydraulic components with different thread sizes
Provides safe and leak-free connections

Enerpac FZ1633

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Connection From1/2" NPTF Female

Dimension D1/4" -18 NPTF mm

Connection To1/4" NPTF Male

Dimension C1/2" -27 NPT mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B19 mm (0.75 in)

Dimension A30 mm (1.18 in)

Product LineIndustrial Tools, Workholding Tools

Product TypeAdapter

SeriesFZ

Documents & CAD

Series documents 2· shared by this product series

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureWorkholding System Components, EnglishPDF·1.3 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

FZ1633FZ-1633FZ 1633Enerpac FZ1633Enerpac FZ-1633Enerpac FZ 1633FZ1633 adapterFZ1633 hydraulic adapterFZ1633 high pressure fittingEnerpac FZ seriesEnerpac FZ series adapter1/2 NPTF female 1/4 NPTF male adapter700 bar hydraulic adapter10,000 psi hydraulic adapter1/2 NPTF female to 1/4 NPTF male fittinghigh pressure hydraulic adapterhydraulic thread adapter1/4 NPTF male hydraulic adapter
