How can I get a price quote for Enerpac FZ1616?

You can request a fast quote for Enerpac FZ1616 from Yılsa Engineering. Reference part number CEY-7B4B2D99B4FC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac FZ1616 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac FZ1616 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac FZ1616?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

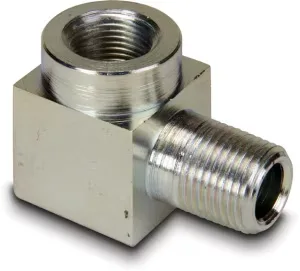

Enerpac FZ1616 3/8" NPTF Street Elbow

Enerpac FZ1616; 700 bar (10,000 psi) maximum operating pressure, 3/8" NPTF male to 3/8" NPTF female, street elbow high pressure hydraulic fitting.

EnerpacMFR # FZ1616SKU # CEY-7B4B2D99B4FC

Country of OriginChina

Connection From3/8" NPTF Male

Dimension D3/8" - 18 NPTF mm

Connection To3/8" NPTF Female

Dimension C3/8" - 18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

FZ1616 is an Enerpac FZ-series high pressure hydraulic fitting of the street elbow type. One end is 3/8"-18 NPTF male and the other is 3/8"-18 NPTF female; the maximum operating pressure is 700 bar (10,000 psi). Dimensions are A 23 mm and B 33 mm. It is used in hydraulic systems to thread directly into a component and change line direction, for hoses, cylinders, components, power sources, tubes and gauges.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
3/8" NPTF male to 3/8" NPTF female connection
Street elbow form threads in directly and changes line direction
Used to connect hoses, cylinders, power sources, tubes and gauges

Enerpac FZ1616

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginChina

Connection From3/8" NPTF Male

Dimension D3/8" - 18 NPTF mm

Connection To3/8" NPTF Female

Dimension C3/8" - 18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B33.00 mm (1.30 in)

Dimension A23 mm (0.94 in)

Product LineIndustrial Tools

Product TypeStreet Elbow

SeriesFZ

Documents & CAD

For this product 1

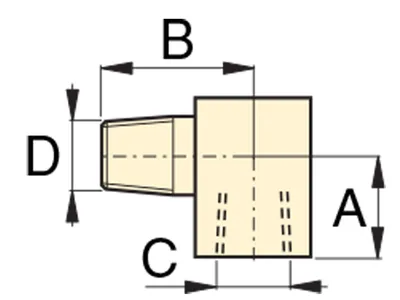

2D DrawingFZ1616 drawingPDF·514 KB

Series documents 3· shared by this product series

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureFZ-BFZ-XSC-Series Fittings; EnglishPDF·333 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

FZ1616FZ-1616FZ 1616Enerpac FZ1616Enerpac FZ-1616FZ1616 street elbowFZ1616 elbowFZ1616 fittingEnerpac FZ seriesEnerpac FZ series fitting3/8 NPTF street elbow3/8 NPTF male to female elbow700 bar hydraulic street elbow10000 psi high pressure elbowhydraulic male female elbowEnerpac hydraulic elbowEnerpac hydraulic fitting
