How can I get a price quote for Enerpac FZ1613?

You can request a fast quote for Enerpac FZ1613 from Yılsa Engineering. Reference part number CEY-55221B11F616. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac FZ1613 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac FZ1613 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac FZ1613?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

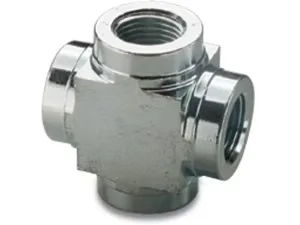

Enerpac FZ1613 3/8" NPTF Cross

Enerpac FZ1613; 700 bar (10,000 psi) maximum operating pressure, 3/8" NPTF female to 3/8" NPTF female, cross high pressure hydraulic fitting.

EnerpacMFR # FZ1613SKU # CEY-55221B11F616

Country of OriginChina

Connection From3/8" NPTF Female

Connection To3/8" NPTF Female

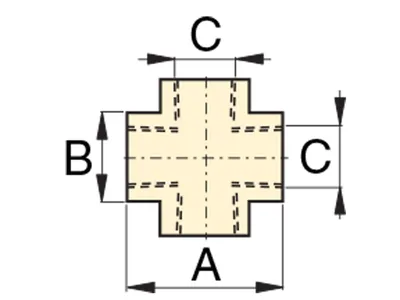

Dimension C3/8"-18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B25.00 mm (1.00 in)

Have questions?Chat on WhatsApp

About This Product

FZ1613 is an Enerpac FZ-series high pressure hydraulic fitting of the cross type. The connection ports are 3/8"-18 NPTF female, and the maximum operating pressure is 700 bar (10,000 psi). Dimensions are A 45 mm and B 25 mm. It is used in hydraulic systems for multi-way distribution when connecting hoses, cylinders, components, power sources, tubes and gauges.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
3/8" NPTF female connection ports
Cross form distributes the line in multiple directions
Used to connect hoses, cylinders, power sources, tubes and gauges

Enerpac FZ1613

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginChina

Connection From3/8" NPTF Female

Connection To3/8" NPTF Female

Dimension C3/8"-18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B25.00 mm (1.00 in)

Dimension A45 mm (1.77 in)

Product LineIndustrial Tools, Workholding Tools

Product TypeCross

SeriesFZ

Documents & CAD

Series documents 3· shared by this product series

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureFZ-BFZ-XSC-Series Fittings; EnglishPDF·333 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

FZ1613FZ-1613FZ 1613Enerpac FZ1613Enerpac FZ-1613FZ1613 crossFZ1613 cross fittingFZ1613 fittingEnerpac FZ seriesEnerpac FZ series fitting3/8 NPTF cross3/8 NPTF female cross700 bar hydraulic cross10000 psi high pressure crosshydraulic cross fittingEnerpac hydraulic crossEnerpac hydraulic fitting
