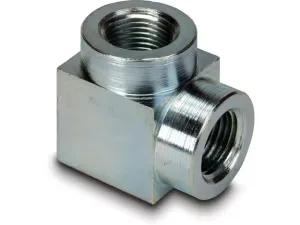

Enerpac FZ1610 3/8" NPTF Elbow

Enerpac FZ1610; 700 bar (10,000 psi) maximum operating pressure, 3/8" NPTF female to 3/8" NPTF female, elbow high pressure hydraulic fitting.

EnerpacMFR # FZ1610SKU # CEY-7B4B2D99A640

Country of OriginChina

Connection From3/8" NPTF Female

Connection To3/8" NPTF Female

Dimension C3/8"-18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B20 mm (0.88 in)

Have questions?Chat on WhatsApp

About This Product

FZ1610 is an Enerpac FZ-series high pressure hydraulic fitting of the elbow type. Both ends are 3/8"-18 NPTF female, and the maximum operating pressure is 700 bar (10,000 psi). Dimensions are A 33 mm and B 20 mm. It is used in hydraulic systems to change line direction when connecting hoses, cylinders, components, power sources, tubes and gauges.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
3/8" NPTF female to 3/8" NPTF female connection
Elbow form changes line direction
Used to connect hoses, cylinders, power sources, tubes and gauges

Enerpac FZ1610

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginChina

Connection From3/8" NPTF Female

Connection To3/8" NPTF Female

Dimension C3/8"-18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B20 mm (0.88 in)

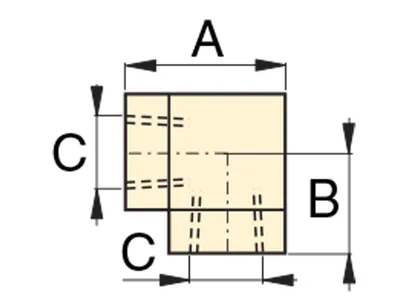

Dimension A33 mm (1.38 in)

Product LineIndustrial Tools, Workholding Tools

Product TypeElbow

SeriesFZ

Documents & CAD

Series documents 3· shared by this product series

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureFZ-BFZ-XSC-Series Fittings; EnglishPDF·333 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

FZ1610FZ-1610FZ 1610Enerpac FZ1610Enerpac FZ-1610FZ1610 elbowFZ1610 fittingEnerpac FZ seriesEnerpac FZ series fitting3/8 NPTF elbow3/8 NPTF female to female elbow700 bar hydraulic elbow10000 psi high pressure elbowhydraulic elbow fittingEnerpac hydraulic elbowEnerpac hydraulic fitting
