How can I get a price quote for Enerpac FZ1605?

You can request a fast quote for Enerpac FZ1605 from Yılsa Engineering. Reference part number CEY-7B4B2D994BEA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac FZ1605 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac FZ1605 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac FZ1605?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

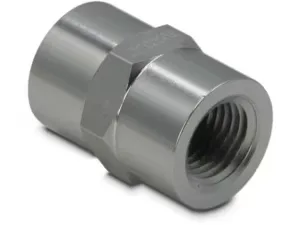

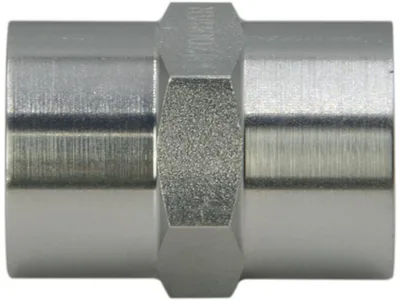

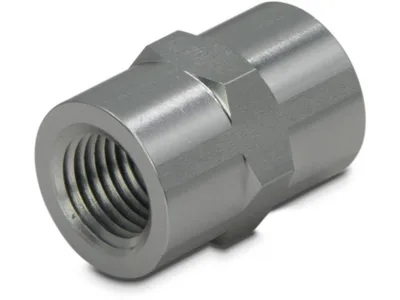

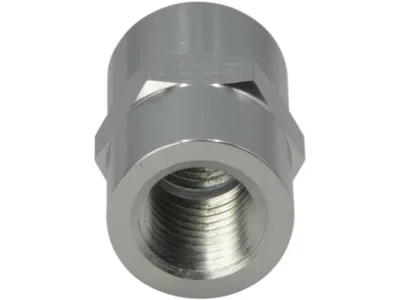

Enerpac FZ1605 700 bar Hydraulic Coupling

Enerpac FZ1605; 700 bar (10,000 psi) maximum operating pressure, 1/4" NPTF female to 1/4" NPTF female high-pressure hydraulic coupling fitting.

EnerpacMFR # FZ1605SKU # CEY-7B4B2D994BEA

Country of OriginChina

Connection From1/4" NPTF Female

Dimension D1/4"-18 NPTF mm

Connection To1/4" NPTF Female

Dimension C1/4"-18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The FZ1605 is a high-pressure hydraulic fitting (coupling) from the Enerpac FZ series. Both ends have 1/4"-18 NPTF female connections, and it is rated for 700 bar (10,000 psi) maximum operating pressure. Dimension A is 29 mm (1.14 in) and dimension B is 19 mm (0.75 in). Fittings are used to connect hydraulic hoses, cylinders, components, power sources, tubes and gauges within a hydraulic system. Enerpac hydraulic fittings provide flexible, safe and leak-free connections. It is used with industrial tools and workholding systems.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
1/4"-18 NPTF female connection on both ends
For connecting hoses, cylinders, pumps, tubes and gauges
Flexible, safe and leak-free connection
Compact dimensions: 29 mm x 19 mm

Enerpac FZ1605

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginChina

Connection From1/4" NPTF Female

Dimension D1/4"-18 NPTF mm

Connection To1/4" NPTF Female

Dimension C1/4"-18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B19 mm (0.75 in)

Dimension A29 mm (1.14 in)

Product LineIndustrial Tools, Workholding Tools

Product TypeCoupling

SeriesFZ

Documents & CAD

Series documents 2· shared by this product series

BrochureFZ-BFZ-XSC-Series Fittings; EnglishPDF·333 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

FZ1605FZ-1605FZ 1605fz1605Enerpac FZ1605Enerpac FZ-1605FZ1605 couplingFZ1605 fittingFZ1605 hydraulic fittingEnerpac FZ seriesEnerpac hydraulic couplingEnerpac hydraulic fitting1/4 NPTF female to female coupling1/4 npt female hydraulic coupling700 bar hydraulic coupling10000 psi hydraulic fittinghigh pressure hydraulic fittinghydraulic hose coupling
