How can I get a price quote for Enerpac F604?

You can request a fast quote for Enerpac F604 from Yılsa Engineering. Reference part number CEY-7B4B2D98FDBD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac F604 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac F604 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac F604?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

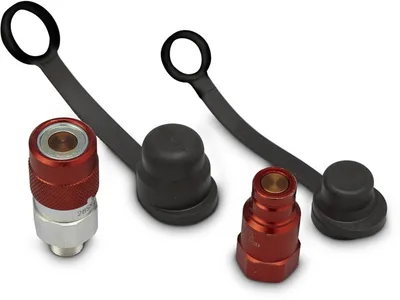

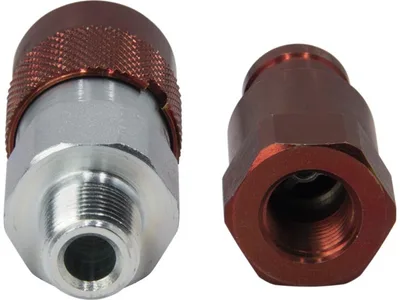

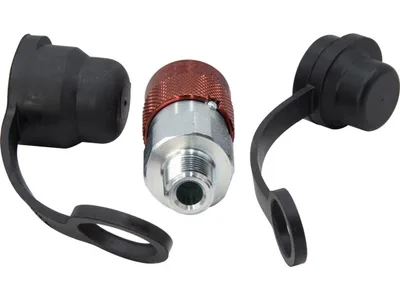

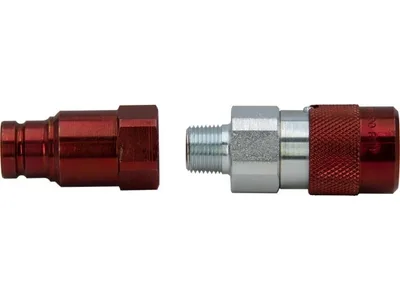

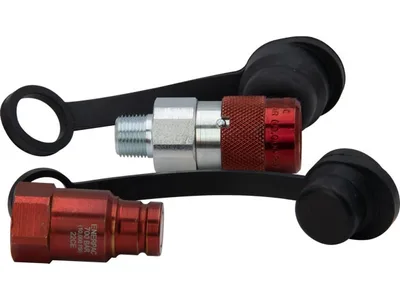

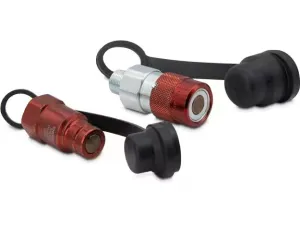

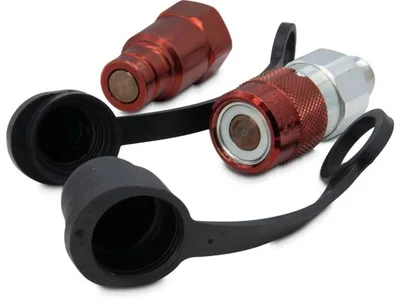

Enerpac F604 700 bar Flush-Face Hydraulic Coupler

Enerpac F604; 700 bar (10,000 psi), 40 l/min flow, 3/8" NPTF flush-face hydraulic coupler, complete male and female set.

EnerpacMFR # F604SKU # CEY-7B4B2D98FDBD

Dimension G29 mm (1.12 in)

Dimension E31 mm (1.23 in)

Country of OriginUnited States

Dimension F27 mm (1.06 in)

Dimension D31 mm (1.23 in)

Dimension C3/8 nptf mm

Have questions?Chat on WhatsApp

About This Product

The Enerpac F604 is a 3/8" high-flow flush-face hydraulic coupler from the F series. It is supplied as a complete set with male and female halves and features push-to-connect operation. Maximum operating pressure is 700 bar (10,000 psi) and maximum flow capacity is 40 l/min (2500 in³/min). The connection thread is 3/8" NPTF. Total length with the male and female halves connected is 111 mm. Country of origin is the United States. The flush-face design provides zero-leak operation with minimal spillage during connection. It is recognized by the Hydraulic Tool Manufacturers Association (HTMA) for safety and performance. Typical use is connecting high-pressure hydraulic hoses, pumps and cylinders.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
40 l/min high flow capacity
Push-to-connect operation for a good connection every time
Flush-face, zero-leak design for minimal spillage
Recognized by HTMA for safety and performance
Complete set with male and female halves; 3/8" NPTF connection

Enerpac F604

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G29 mm (1.12 in)

Dimension E31 mm (1.23 in)

Country of OriginUnited States

Dimension F27 mm (1.06 in)

Dimension D31 mm (1.23 in)

Dimension C3/8 nptf mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B72 mm (2.85 in)

Part TypeComplete Set

Max. Operating Pressure10000 psi

Product TypeFlush-face Coupler

Maximum Flow Capacity40 l/min (2500 in³/min)

SeriesF

Dimension A111 mm (4.36 in)

Product LineIndustrial Tools

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic CouplersPDF·237 KB

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureA-C-F-T-Series Hydraulic Couplers; EnglishPDF·360 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model
