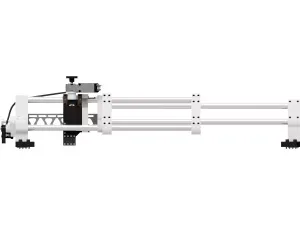

Enerpac F0152C0002XX-SK PSL Profile Slide

Enerpac F0152C0002XX-SK; PSL profile slide attachment for 660.4–1270.0 mm (26–50 in) clamshell diameters, cuts up to 127.0 mm (5 in) wall for hands-free weld preps.

EnerpacMFR # F0152C0002XX-SKSKU # YLS9MGMNMUSORVL

Dimension C800.1-1130.3 mm (31.5-44.5 in)

Dimension B469.9 mm (18.5 in)

Product TypeProfile Slide

Dimension A749.3 mm (29.5 in)

Product LineMachining Tools

Have questions?Chat on WhatsApp

About This Product

F0152C0002XX-SK is the PSL profile slide attachment for 660.4–1270.0 mm (26–50 in) clamshell diameters. It uses one pair of fixed length shafts and two pairs of adjustable length shafts. Dimensions are A 749.3 mm, B 469.9 mm and C 800.1–1130.3 mm. The profile slide is an automated method of single point cutting a weld prep on the end of a pipe using a template, which is especially useful on heavy wall weld preps. It is fed a predetermined amount per clamshell revolution and cuts up to 127.0 mm (5 in) wall with standard templates. It bolts to the face of the clamshell and can be mounted on all NB, MS and HD clamshells from 203.2 mm (8 in) to 1270 mm (50 in).

Features and Benefits

For 660.4–1270.0 mm (26–50 in) clamshell diameters; uses one pair of fixed and two pairs of adjustable length shafts
Cuts up to 127.0 mm (5 in) wall with standard templates
Produces safe hands-free weld preps
Bolts directly to clamshells using quick slide or standard bolt hole configuration
Can be fixed in a stationary position for counterboring
Optional cable fed counterbore and weld prep templates are available
