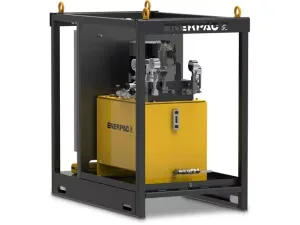

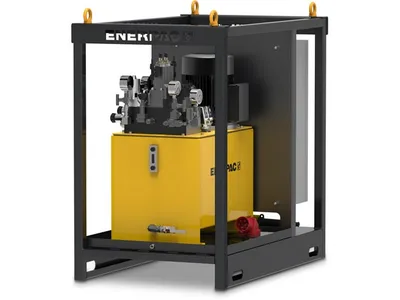

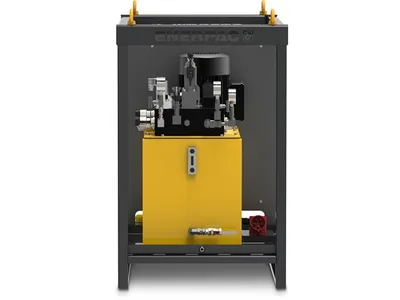

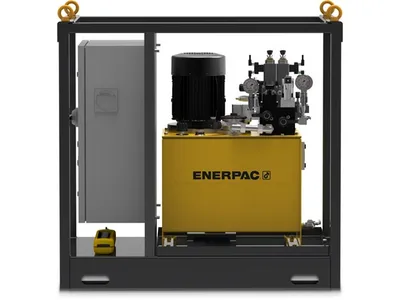

Enerpac EVOP12140J 700 bar Synchronous Lift Pump

Enerpac EVOP12140J; 700 bar (10,000 psi), 2.1 L/min rated flow, 4 hp, 460-480 V, 3-phase electric hydraulic pump for the Pump-per-Point synchronous lifting system.

EnerpacMFR # EVOP12140JSKU # YLS6TJJAIGVKBNA

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginNL (Netherlands)

Motor Phases3 Ph

Dimension C680 mm (26.75 in)

Motor Electrical Specification460-480 V, 3 Ph, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

EVOP12140J is an electric hydraulic pump used in the Enerpac EVOP-Series (Pump-per-Point) synchronous lifting system. Each pump controls a single lifting point, combining high flow rate with accurate positioning. The pump delivers 2.1 L/min (128 in³/min) at the maximum operating pressure of 700 bar (10,000 psi). It has a 4 hp, 460-480 V, 3-phase, 50/60 Hz motor, a 4-way, 3-position solenoid valve and a 10 gal (2440 in³) reservoir. Variable flow is 0.6-2.1 L/min at high pressure and 3.3-11.1 L/min below 125 bar. Synchronization is controlled by a variable frequency drive (VFD) on the motor. The system is used with high-tonnage cylinders from 300 to 1000 tons, and in long-stroke and repetitive lifting work such as climbing jack applications.

Features and Benefits

Pump-per-Point design: each pump controls one lifting point, combining high flow rate and accuracy
VFD synchronization on the motor gives smooth operation at high lifting speeds and accuracy of up to 1.0 mm (0.040 in)
Suitable for high-tonnage cylinders in the 300 to 1000-ton range
Up to 8x lifting speed versus similar methods on long-stroke and repetitive work such as climbing jacks
Standard control interface for easy set-up and selection of multiple lifting options
700 bar (10,000 psi) operating pressure, solenoid-operated 4-way, 3-position valve, extended duty cycle

Enerpac EVOP12140J

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range700 bar (10,000 psi)

Variable Output Flow (High Pressure >125 bar)0,6-2,1 l/min (38-128 in³/min)

Country of OriginNL (Netherlands)

Motor Phases3 Ph

Maximum Flow at Rated Pressure2,1 l/min (128 in3/min · 2,1 l/min · 128 in³/min)

Dimension C680 mm (26.75 in)

Motor Electrical Specification460-480 V, 3 Ph, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B1113 mm (43.81 in)

Motor Voltage460-480 V V

Output Flow Rate (100 psi)677 in³/min

Motor Frequency50/60 Hz Hz

Reservoir Capacity10 gal

Product TypeElectric Pump - Synchronous Lifting System

Duty CycleExtended

Reservoir Capacity40000 cm³ (2440 in³)

Valve OperationSolenoid

Pump Valve Type4-way, 3-position

Motor Size4 hp

SeriesEVOP

Output Flow Rate @ 10,000 psi128 in³/min

Variable Output Flow (Low Pressure <125 bar)3,3-11,1 l/min (201-677 in³/min)

Pump Power SourceElectric

Flow Rate Range at Rated Pressure1,96 - 3,27 l/min (120 - 200 in³/min)

Accuracy Over Full StrokeUp to 0.040"

Number of Lift Points1

Number of Outlets1

Cylinder CompatibilitySingle-acting, Double-Acting

Dimension A1113 mm (43.81 in)

Product LineIndustrial Tools

Weight310 kg (685 lbs)

Usable Oil Capacity40 l
