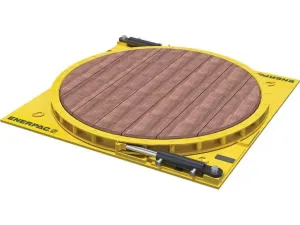

Enerpac ETT200 225 ton Turntable

Enerpac ETT200; 2000 kN (225 ton) capacity, 1790 mm platform diameter, single-cylinder, 700 bar hydraulic turntable.

EnerpacMFR # ETT200SKU # CEY-55221B12D9F9

Oil Capacity792 cm³ (48.31 in³)

Dimension L2000 mm (78.74 in)

Country of OriginNetherlands

Platform Diameter1790 mm (70.47 in)

Number of Cylinders1

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The ETT200 is an industrial turntable designed for safe and controlled rotation of heavy loads. With one cylinder it has 2000 kN (225 ton) capacity. The cylinder model number is BRD259-ETT. Platform diameter is 1790 mm, body size 2000 x 2000 mm, height 150 mm and weight 1700 kg. Maximum operating pressure is 700 bar (10,000 psi). Rotation per stroke is 12.5°; oil capacity is 792 cm³, 344 cm³ on retract. The surface is hardwood. It is compatible with standard Enerpac pumps. Rotation direction can be changed easily, and the compact size suits applications with limited space.

Features and Benefits

Safe and controlled rotation of heavy loads
Rotation direction easily changed
2000 kN (225 ton) capacity with one cylinder
Compact size for limited space
Compatible with standard Enerpac pumps
Hardwood surface; cylinder BRD259-ETT

Enerpac ETT200

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity792 cm³ (48.31 in³)

Dimension L2000 mm (78.74 in)

Country of OriginNetherlands

Platform Diameter1790 mm (70.47 in)

Number of Cylinders1

Maximum Operating Pressure700 bar (10,000 psi)

Capacity2000 kN (225 ton)

Oil Capacity (Retract)344 cm³

ApplicationsRotate

Product LineHeavy Lifting Technology

Weight1700 kg (3748 lbs)

Dimension H150 mm (5.91 in)

Rotation per Stroke12,5 °

Dimension W2000 mm (78.74 in)

Product TypeIndustrial-Turntable

Cylinder Capacity222 kN (25 ton)

SeriesETT

Oil Capacity (Retract)21 in³

Documents & CAD

Series documents 1· shared by this product series

BrochureETT-Series Hydraulic Turntables; EnglishPDF·212 KB
