How can I get a price quote for Enerpac EGM8218?

You can request a fast quote for Enerpac EGM8218 from Yılsa Engineering. Reference part number CEY-0681555D7404. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac EGM8218 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac EGM8218 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac EGM8218?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

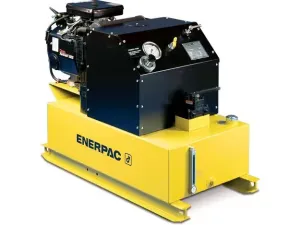

Enerpac EGM8218 700 bar Gas Hydraulic Pump

Enerpac EGM8218; 700 bar (10,000 psi), 12.9 / 5.7 L/min, 18 hp gasoline engine, two-speed hydraulic pump for single-acting cylinders.

EnerpacMFR # EGM8218SKU # CEY-0681555D7404

Maximum Operating Pressure Range10,000 psi

Output Flow Rate 1st Stage12,9 l/min (785.4 in³/min · 3.4 gal/min)

Country of OriginUnited States

Maximum Flow at Rated Pressure1.5 gal/min

Valve FunctionAdvance / Retract

Output Flow Rate 2nd Stage5,7 l/min (346.5 in³/min)

Have questions?Chat on WhatsApp

About This Product

The EGM8218 is an EGM series gasoline-powered, two-speed hydraulic pump for use with single-acting cylinders. Maximum operating pressure is 700 bar (10,000 psi). The first stage delivers 12.9 L/min up to 3,700 psi and the second stage 5.7 L/min at 10,000 psi. The pump is driven by an industrial grade 18 hp twin-cylinder engine. It features a manual 3-way, 2-position valve (advance / retract), approx. 68 L (18 gal) usable oil capacity, a panel-mounted pressure gauge and an external adjustable relief valve (1,200–10,000 psi). Weight is 890 lb (approx. 404 kg) and sound level is 94 dBA. It is used for heavy lifting, pressing and maintenance work at sites without electrical power, providing rapid advance of single-acting cylinders.

Features and Benefits

Industrial grade 18 hp twin-cylinder engine
Two-speed design with high by-pass pressure for rapid cylinder advance
Panel-mounted pressure gauge and relief valve for system pressure control
External adjustable relief valve (1,200–10,000 psi) without opening the pump
Built-in oil temperature and oil level gauge
Integral priming circuit for quick starts after transport

Enerpac EGM8218

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range10,000 psi

Output Flow Rate 1st Stage12,9 l/min (785.4 in³/min · 3.4 gal/min)

Country of OriginUnited States

Maximum Flow at Rated Pressure1.5 gal/min

Valve FunctionAdvance / Retract

Output Flow Rate 2nd Stage5,7 l/min (346.5 in³/min)

Usable Oil Capacity18 gal

1st Stage Pressure Rating3700 psi

Product TypeGas Pump

Reservoir Capacity4,158 in³

Sound Level94 dB(A)

Maximum Operating Pressure10,000 psi

Valve OperationManual

Pump Valve Type3-way, 2-position

SeriesEGM

Pump Power SourceGasoline

2nd Stage Pressure Rating10,000 psi

Cylinder CompatibilitySingle-acting

Product LineIndustrial Tools

Motor Size32.2 ft-lbs

Weight890 lbs

2nd Stage Output Flow1.5 gal/min

Documents & CAD

For this product 2

Repair Parts SheetGas Powered Pumps - EGM8218, EGM8418PDF·604 KB·English

BrochureEGM-8000-Series Gasoline Pumps; EnglishPDF·458 KB

Series documents 1· shared by this product series

Instruction ManualPump - ElectricPDF·1.7 MB 2 languages· in one file
