How can I get a price quote for Enerpac E290PLUS?

You can request a fast quote for Enerpac E290PLUS from Yılsa Engineering. Reference part number CEY-55221B1182BE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac E290PLUS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac E290PLUS genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac E290PLUS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

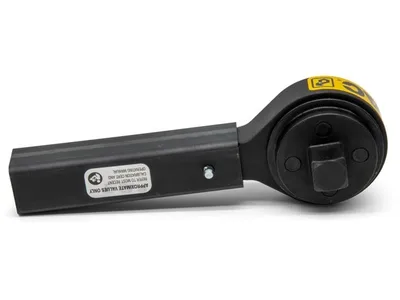

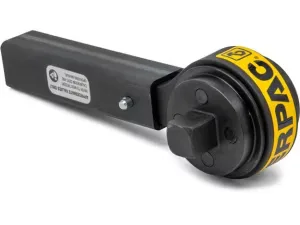

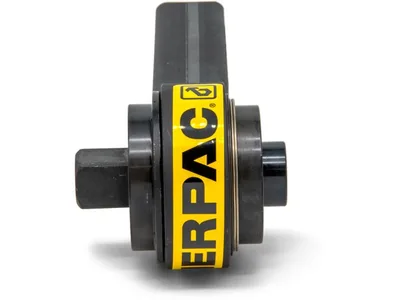

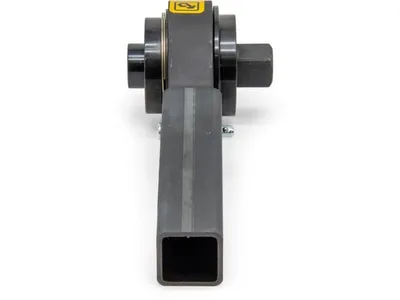

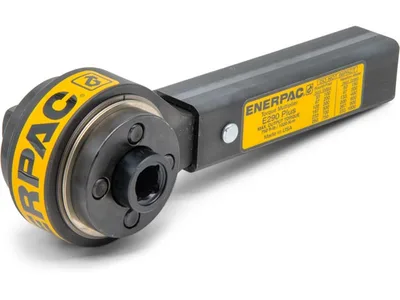

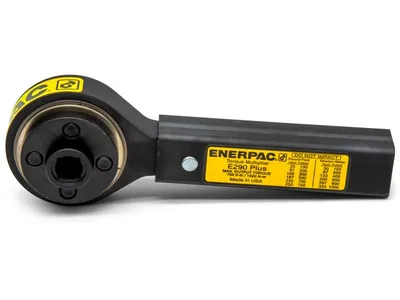

Enerpac E290PLUS 1020 Nm Torque Multiplier

Enerpac E290PLUS; 1020 Nm (750 ft-lbs) output torque, 3:1 ratio, 1/2" input – 3/4" output square drive, reaction bar manual torque multiplier; 1.8 kg.

EnerpacMFR # E290PLUSSKU # CEY-55221B1182BE

Overload ProtectionNo

Country of OriginUnited States

Maximum Torque Output1020 Nm (750 ft-lbs)

ApplicationsTorque

Dimension D71 mm

Anti-BacklashNo

Have questions?Chat on WhatsApp

About This Product

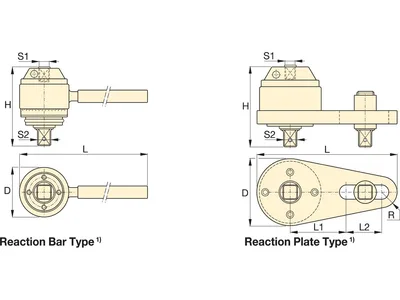

The E290PLUS is a reaction bar manual torque multiplier from the Enerpac E series. Its high-efficiency planetary gear set converts 339 Nm (250 ft-lbs) of input torque into 1020 Nm (750 ft-lbs) of output torque at a 3:1 ratio. It has a 1/2" female square input and a 3/4" male square output drive. Length is 217 mm, width 71 mm, height 84 mm and weight 1.8 kg. This model has no overload protection and no anti-backlash device. It is reversible for tightening or loosening bolts. Compact and portable, it suits maintenance, assembly and field work where space is limited and multiple reaction points are available, for make-up or break-out of stubborn fasteners. Country of origin is the United States.

Features and Benefits

High-efficiency planetary gearing: 1020 Nm output from 339 Nm input
3:1 torque multiplication ratio
1/2" female square input, 3/4" male square output
Reversible: tighten or loosen bolts
Reaction bar type, portable 1.8 kg design
