How can I get a price quote for Enerpac DGR2?

You can request a fast quote for Enerpac DGR2 from Yılsa Engineering. Reference part number CEY-7B4B2D995027. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac DGR2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac DGR2 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac DGR2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

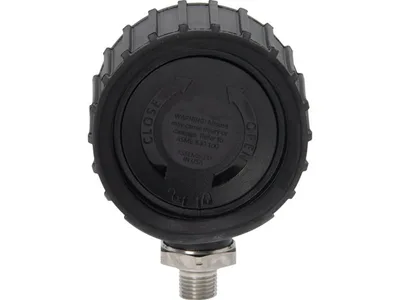

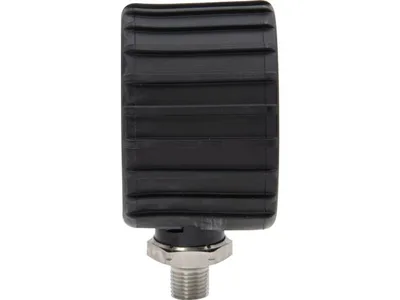

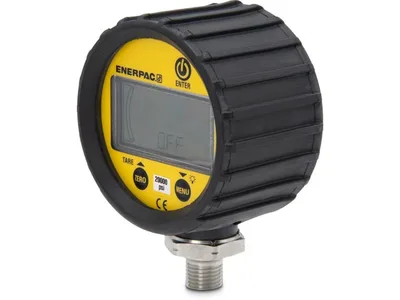

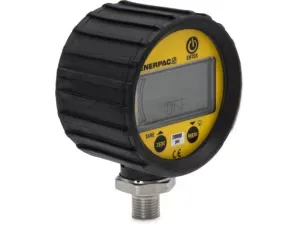

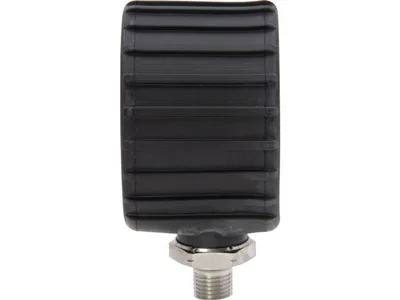

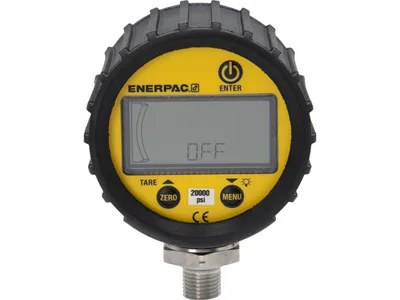

Enerpac DGR2 1380 bar Digital Pressure Gauge

Enerpac DGR2; 0–1380 bar (20,000 psi) range, 0.25% full-scale accuracy, 0.1 bar resolution, IP65-rated digital hydraulic pressure gauge.

EnerpacMFR # DGR2SKU # CEY-7B4B2D995027

Accuracy (Full Scale)0.25 %

Country of OriginUnited States

Maximum Operating Pressure1380 bar (20,000 psi)

Pressure Range0 - 140 MPa (0 - 1400 kg/cm²)

Pressure Resolution0.01 MPa (0.1 bar · 0.1 kg/cm² · 1 psi)

StyleDigital

Have questions?Chat on WhatsApp

About This Product

The DGR2 is a digital hydraulic pressure gauge from the Enerpac DGR series. It measures system pressure up to 1380 bar (20,000 psi) with an accuracy of 0.25% of full scale. Resolution is 0.1 bar, 1 psi, 0.01 MPa and 0.1 kg/cm². The display units are user selectable between psi, bar, MPa and kg/cm². A zero reset function ensures the gauge reads actual system pressure. It runs on a 3 VDC battery; batteries are included and a condition indicator is shown on the readout. Auto shut-off is menu selectable. With an IP65-rated case, 0.5 kg weight and UL listing plus CE and RoHS compliance, it is used for pressure monitoring and verification on hydraulic cylinders, pumps and bolting systems. Country of origin is the United States.

Features and Benefits

Rated for system pressure up to 1380 bar (20,000 psi)
Accuracy of 0.25% of full scale
User-selectable units: psi, bar, MPa, kg/cm²
Zero reset ensures reading of actual system pressure
Batteries included with condition indicator; menu-selectable auto shut-off
IP65-rated case; UL listed, CE and RoHS compliant

Enerpac DGR2

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Accuracy (Full Scale)0.25 %

Country of OriginUnited States

Maximum Operating Pressure1380 bar (20,000 psi)

Pressure Range0 - 140 MPa (0 - 1400 kg/cm²)

Pressure Resolution0.01 MPa (0.1 bar · 0.1 kg/cm² · 1 psi)

StyleDigital

Product TypePressure Gauge

SeriesDGR

Product LineIndustrial Tools, Workholding Tools

Weight0.5 kg

Voltage3 VDC Battery

Documents & CAD

For this product 2

Instruction ManualDigital Pressure Gauge, DGR-2PDF·14.1 MB 4 languages· in one file

BrochureDGR-Series Digital Pressure Gauges; EnglishPDF·222 KB

Series documents 1· shared by this product series

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 2

3D Model

Alternative Names & Search Terms

DGR2DGR-2DGR 2dgr2Enerpac DGR2Enerpac DGR-2Enerpac DGR 2DGR2 digital gaugeDGR2 pressure gaugeEnerpac DGR seriesEnerpac digital gaugeEnerpac pressure gaugedigital hydraulic pressure gauge1380 bar digital gauge20000 psi digital gaugehigh pressure digital gaugeIP65 digital pressure gaugehydraulic pressure meter
