How can I get a price quote for Enerpac CY27545?

You can request a fast quote for Enerpac CY27545 from Yılsa Engineering. Reference part number CEY-0681555D75AD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CY27545 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CY27545 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CY27545?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

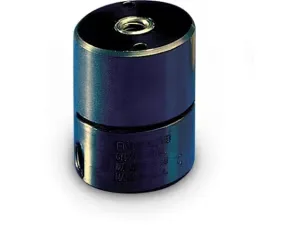

Enerpac CY27545 59 kN Hollow Plunger Cylinder

Enerpac CY27545; 59.2 kN (13,320 lbs) capacity, 16 mm (0.63 in) stroke, 210 bar (3,000 psi). Spring-return hollow plunger workholding cylinder.

EnerpacMFR # CY27545SKU # CEY-0681555D75AD

Oil Capacity (Advance)45,88 cm³ (2.8 in³)

Dimension V.375-16 UNC mm

Maximum Operating Pressure210 bar (3,000 psi)

Dimension T31,8 mm (1.25 in)

ApplicationsPush, Pull

Dimension K.875-9 UNC mm

Have questions?Chat on WhatsApp

About This Product

CY27545 is a hollow plunger workholding cylinder from the Enerpac CY series. The load can be attached to either end of the cylinder, so both push and pull actions use the full cylinder capacity. Spring return allows easy unloading of the workpiece. Key values: 59.2 kN (13,320 lbs) capacity, 16 mm (0.63 in) stroke, 210 bar (3,000 psi) maximum operating pressure and 28.6 cm² (4.44 in²) effective area. Advance oil capacity is 45.88 cm³. Center hole diameter is 22.6 mm (0.89 in), outside diameter Ø 88.9 mm, height 92.2 mm and weight approx. 2.7 kg (6 lbs). Threads are .875-9 UNC and .375-16 UNC. It is used in compact fixture designs, on table-top surfaces and T-slot tables, and in workholding applications that require push or pull. Country of origin: United States.

Features and Benefits

Load can be attached to either end; full capacity in both push and pull
High capacity in small dimensions allows compact fixture designs
Spring return for easy unloading of the workpiece
Threaded collar and base mounting holes for table-top and T-slot mounting
Nickel-plated plunger, plunger wiper and internal venting prevent corrosion

Enerpac CY27545

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)45,88 cm³ (2.8 in³)

Dimension V.375-16 UNC mm

Maximum Operating Pressure210 bar (3,000 psi)

Dimension T31,8 mm (1.25 in)

ApplicationsPush, Pull

Dimension K.875-9 UNC mm

Product TypeWorkholding Hollow Plunger Cylinder

SeriesCY

Dimension Z11,2 mm (0.44 in)

Dimension A92,2 mm (3.63 in)

Product LineWorkholding Tools

Weight2,7 kg (6 lbs)

Dimension D179,5 mm (3.13 in)

Maximum Cylinder Capacity (Advance)13,320 lbs

Country of OriginUnited States

Max. Cylinder Capacity Range10,000 - 19,999 lbs

Dimension F31,8 mm (1.25 in)

Dimension DØ 88,9 mm (Ø 3.5 in)

Center Hole Diameter Y22,6 mm (0.89 in)

Cylinder Effective Area (Advance)28,65 cm² (4.44 in²)

Dimension U53,8 mm (2.12 in)

Dimension B76,2 mm (3 in)

Plunger TypeHollow

Cylinder MaterialSteel

Dimension H11,2 mm (0.44 in)

Maximum Cylinder Capacity (Advance)59,3 kN

Stroke16 mm (0.63 in)

Dimension W40,9 mm (1.61 in)

Return TypeSingle-Acting, Spring Return

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualCylinder - HollowPDF·42 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
